Picking the right BMW 5 Series transmission pan can make routine service and long-term reliability easier. You want a pan that fits precisely, resists corrosion, and supports proper fluid flow so shifting and cooling remain consistent. This guide shortlists the top options we vetted for fitment and serviceability, focusing on pans that simplify fluid changes and help protect the transmission.Below you will find the top picks and a clear explanation of the criteria we used to evaluate them, so you can choose the best pan for your maintenance goals.
Looking for other parts? See all BMW 5 Series parts & accessories.
Top Picks at a Glance
| Best overall The best all-around choice for most situations | Dorman 265-850 Transmission Oil Pan with Drain Plug and Replaceable Filter |  |
| Best Quality Built to a higher standard if you want something more solid | Automatic Transmission Oil Pan for BMW 1/3/5/6/7 Series, X3, X5, Z4 (replacement for 24117536387 / 24117571217 / 24152333907) |  |
| Best Value The sweet spot between price and what you get | A-Premium Transmission Oil Pan with Gasket for BMW (A6HP26Z/6-Speed) |  |
| Best budget The cheapest option that still gets the job done reliably | WEDOAUTO Transmission Oil Pan with Gasket for BMW (fits 5 Series models) |  |
| Highest Rated A top-rated pick with lots of positive feedback | AUCERAMIC Transmission Oil Pan with Filter and Gasket Kit for BMW |  |
| Most popular A crowd favorite that many people choose with confidence | KAX Transmission Oil Pan with Drain Plug |  |
| Best Seller A high-volume bestseller chosen again and again | DEEGOOLY Transmission Filter Oil Pan Kit (24118612901) |  |
1. Dorman 265-850 Transmission Oil Pan with Drain Plug and Replaceable Filter
| Material | Plastic |
|---|---|
| Model | 265-850 Automatic Transmission Oil Pan |
| Manufacturer Part Number | 265-850 |
| OEM Part Number | CY1214647-PRM; 52854834AB; 68225344AA; 68233701AA; 68233701AB; 68233701AC |
| Position | Center |
This Dorman transmission oil pan replaces the factory pan with a service-friendly design that adds a drain plug and a replaceable 265-850F filter kit. It is used during transmission maintenance to allow draining fluid before lowering the pan and to let you replace only the internal filter instead of the entire pan assembly. Notable features include a molded plastic construction, included bolts and gasket, internal magnets to catch metal particles, and a filter kit option for cheaper future servicing. In practical terms the drain plug reduces messy fluid spills and speeds routine drain-and-fill procedures, while the replaceable filter cuts ongoing maintenance cost compared with non-serviceable pans. Fit and finish are generally good and many installers report leak-free service when torque sequence and specs are followed; a few users found bolt-hole alignment tight and removal may require lifting the transmission or working around exhaust crossover pipes. This pan is a useful upgrade where serviceability and lower long-term cost are priorities, though installers should be prepared for a slightly more involved install in constrained engine bays.
Best for: Balanced, all-round buyers who value easier routine maintenance and lower ongoing service cost and want a practical, serviceable transmission pan upgrade.
Less Ideal for: Drivers seeking heavy-duty metal pans for extreme off-road use or those who want a direct factory-replica pan without serviceability changes should consider other options.
- Integrated drain plug allows fluid removal before pan removal to reduce spills and simplify service.
- Replaceable filter design lets you replace only the filter during servicing, lowering long-term maintenance cost.
- Includes new gasket and mounting hardware for a complete install and immediate fit-up.
- Internal magnets capture metal debris, helping monitor wear and protect the transmission.
- Made of plastic rather than metal, which may be less impact resistant in some environments.
- Some installers report tight bolt-hole alignment and clearance issues that can complicate removal or installation.
- Designed for specific Chrysler/Dodge/Jeep/Ram transmissions, so compatibility must be confirmed for your vehicle.
Verdict: A service-oriented aftermarket pan that makes transmission drain-and-fill jobs cleaner and cheaper over time, provided fitment and clearance are checked before installation.
2. Automatic Transmission Oil Pan for BMW 1/3/5/6/7 Series, X3, X5, Z4 (replacement for 24117536387 / 24117571217 / 24152333907)
| Manufacturer | KeTingMaoYi LT SHOP |
|---|---|
| Item model number | KeTingMaoYi LT SHOP |
| Number of pieces | 1 |
This transmission oil pan is a straightforward replacement part intended to fit a range of BMW models including the 5 Series specified in the article goal when matching the listed part numbers. It mounts in place of the original pan to hold transmission fluid and provide the correct sealing surface for the transmission housing. The listing emphasizes compatibility with known BMW part numbers, which helps ensure a proper fit when you check your vehicle's installed number before ordering. In use it performs the basic, necessary job of containing fluid and supporting the pan gasket and drain area without added features like integrated magnets or internal baffles. The practical benefits are simple: it restores a damaged or corroded pan, stops leaks, and lets you refill with fresh fluid during service. Important limitations are that the listing does not detail material thickness, corrosion protection, or finish and it does not advertise extra performance upgrades or built-in fluid cooling, so buyers seeking enhanced cooling or heavy-duty durability should consider aftermarket pans with explicit construction specs.
Best for: Performance-oriented buyers who prioritize restoring proper transmission function and shift feel by replacing a failing pan with a part that matches factory part numbers; good for owners who service their cars to maintain driving response.
Less Ideal for: Not ideal for buyers seeking a performance-upgrade pan with improved cooling, added fluid capacity, or explicit heavy-duty corrosion protection.
- Lists direct-fit BMW part numbers for straightforward verification of compatibility
- Designed to replace a damaged or leaking factory pan and restore fluid containment
- Simple, no-frills design that is easy to install during a transmission service
- No material, coating, or thickness specifications provided to judge long-term durability
- Does not include upgraded features such as integrated magnets, drain plug, or cooling fins
Verdict: A direct-fit replacement transmission pan that restores fluid containment and factory fitment when you match the listed BMW part numbers.
3. A-Premium Transmission Oil Pan with Gasket for BMW (A6HP26Z/6-Speed)
| Fit Type | Vehicle Specific |
|---|---|
| Product Grade | like new |
| Material Type | Plastic |
| Compatible with Vehicle Type | Car |
This transmission oil pan is a vehicle-specific replacement designed for BMW models that use the A6HP26Z/6-speed automatic family. It replaces the factory transmission sump and is typically used during transmission service or when repairing a leaking pan. The pan is made from plastic and ships with a gasket-compatible design to simplify installation and re-sealing. Buyers will appreciate that it targets a long list of BMW chassis and engines that share the same 6-speed transmissions so it reduces compatibility guessing for those models. In practice the pan provides a direct-fit option that reviewers report seals well and helps eliminate leaks and rough shifting associated with a damaged sump. Limitations are that the part is plastic rather than metal, which is common for many aftermarket pans and may be less impact-resistant than a stamped steel alternative, and installation may require proper torque sequence and new hardware to avoid future leaks. This is a practical, budget-minded replacement for routine transmission service on supported BMWs.
Best for: Practical optimizers who want a cost-effective, vehicle-specific transmission pan for routine service and leak repairs on BMW 5 Series models using the specified 6-speed transmission.
Less Ideal for: Owners seeking a heavy-duty or performance-oriented metal pan for offroad or high-stress use should consider reinforced or aftermarket performance pans instead.
- Vehicle-specific fit for multiple BMW models using the A6HP26Z/6-speed transmission, reducing fitment confusion
- Includes gasket-compatible design to streamline resealing during transmission service
- Made as a direct replacement intended to address leaks and restore proper fluid containment
- Constructed from plastic which is less impact-resistant than metal transmission pans
- May require replacement of bolts or attention to torque sequence during installation to ensure a leak-free seal
Verdict: A budget-friendly, vehicle-specific replacement transmission pan that restores sealing for BMWs with the A6HP26Z 6-speed transmission but uses plastic construction rather than metal.
4. WEDOAUTO Transmission Oil Pan with Gasket for BMW (fits 5 Series models)
| Manufacturer | WEDOAUTO |
|---|---|
| OEM Part Numbers | 24117624192, 24117613253, 24117604960, 24118612901 |
| Fits Vehicles | Includes BMW 5 Series fitments listed in product details |
This WEDOAUTO transmission oil pan with gasket is an inexpensive aftermarket replacement intended to restore a leaking or damaged transmission pan on compatible BMW vehicles. It is used in place of the factory pan and installs with the included gasket to provide a sealed transmission fluid sump. For everyday use it offers a straightforward way to stop leaks and return the transmission to normal fluid containment without removing other transmission components. The listing references multiple BMW fitments including 5 Series models and supplies OEM part numbers to help confirm compatibility. Practical benefits are simple: lower cost than a dealer part and a direct replacement fit when the OE number matches. Important limits are that no installation instructions are provided and professional fitting is recommended, and build quality and long-term durability can vary compared with factory-quality parts. Buyers should verify the OEM numbers and expect a budget-level aftermarket option rather than an upgraded performance component.
Best for: Budget-conscious owners looking to fix a leaking or damaged transmission pan on a BMW 5 Series who prioritize lower replacement cost and fast restoration of serviceability.
Less Ideal for: Owners seeking a long-term factory-quality or performance upgrade should consider OEM replacements or premium aftermarket pans with documented durability and warranties.
- Direct replacement designed to match common BMW transmission pan OEM numbers for easier fit verification
- Includes gasket for a complete pan-to-transmission seal at installation
- Significantly lower cost compared with factory or dealer replacement parts
- No installation instructions included which may complicate DIY replacement
- Aftermarket build quality may not match factory-quality parts for long-term durability
Verdict: A cost-focused, direct-fit replacement transmission pan and gasket for BMW 5 Series drivers who need an affordable repair rather than a factory-level upgrade.
5. AUCERAMIC Transmission Oil Pan with Filter and Gasket Kit for BMW
| Transmission type | 6HP26Z, ZF6HP26, 6HP26X, ZF6HP28, 6HP32 |
|---|---|
| Package contents | Pan, filter, gasket, 21 screws |
| Material | 65% PA66 + 35% glass fiber |
This AUCERAMIC kit replaces the transmission oil pan and includes a new filter, gasket and 21 mounting screws so you get a ready-to-install assembly. It is designed for BMW models that use ZF 6-speed transmissions (6HP26/26Z/26X/28/32) and is intended as a direct factory-quality replacement. Made from a glass-fiber reinforced polyamide blend, the pan aims to resist corrosion and withstand normal service conditions while the included upgraded bolts reduce the chance of stripped heads during installation. Typical use is a transmission service or leak repair where you drop the pan, replace the filter and gasket, and reinstall with new hardware. Practical benefits are reduced maintenance cost versus dealer service and getting everything needed in one kit. Limitations are that fitment is specific to certain BMW transmissions and years so you must confirm part numbers before buying, and the plastic composite construction, while corrosion-resistant, is not metal and may behave differently under extreme heat or impact compared with an OEM metal pan.
Best for: A reliability-focused buyer who prefers doing thorough, correct maintenance themselves and wants a complete replacement kit that lowers service cost and restores proper transmission sealing.
Less Ideal for: Those seeking heavy-duty metal pans for extreme offroad or high-performance applications should consider purpose-built metal alternatives.
- Complete kit includes pan, filter, gasket and 21 mounting screws for a single service
- Designed for ZF 6-speed BMW transmissions to match common factory replacement part numbers
- Glass-fiber reinforced polyamide construction resists corrosion compared with untreated metal
- Included upgraded bolts reduce risk of stripped fasteners during removal and installation
- Compatibility is limited to specific transmission IDs and model years so incorrect selection will not fit
- Made from reinforced plastic rather than metal which may be less tolerant of high-impact damage
Verdict: A complete, reliability-oriented replacement kit for BMWs with ZF 6-speed transmissions that simplifies service and cuts dealer costs, provided you confirm exact fitment.
6. KAX Transmission Oil Pan with Drain Plug
| Manufacturer | KAX |
|---|---|
| Model | Transmission Oil Pan |
| Exterior | Painted |
| Includes | Drain Plug, Gasket |
This KAX transmission oil pan replaces the factory pan and adds a threaded drain plug for easier fluid changes. It is used as a direct replacement when the original pan is damaged, corroded, or leaking; installation is typical of transmission pan swaps and uses the factory mounting points and gasket surface. The painted exterior helps resist surface corrosion and the kit includes a gasket and drain plug so you can drop the pan and service the fluid without removing the pan to drain it. Buyers report consistent fit and no leaks when installed correctly. Limitations are that this is an aftermarket pan so bolt hole alignment and finish may require careful fitment and torqueing to avoid leaks, and the painted surface will not protect against heavy impacts or deep corrosion like thicker steel or welded pans. Expect to follow factory tightening sequence and replace the filter or seals as recommended when servicing the transmission.
Best for: Convenience-driven buyers who want a straightforward, service-friendly replacement pan that makes transmission fluid changes easier and reduces shop time.
Less Ideal for: Buyers seeking a heavy-duty, impact-resistant or long-term corrosion-proof upgrade should consider thicker OEM-style or reinforced pans instead.
- Includes threaded drain plug for easier fluid changes without dropping the whole assembly
- Supplied gasket in the kit simplifies installation and reduces need for extra parts
- Painted exterior provides basic corrosion resistance compared with bare metal pans
- Multiple customers report accurate fit and leak-free installation when properly torqued
- Aftermarket construction may require careful alignment and torqueing to ensure a perfect seal
- Painted finish offers limited protection against heavy corrosion or road impact damage
Verdict: A practical, convenience-focused replacement transmission pan that adds a drain plug for easier servicing but is not a heavy-duty upgrade.

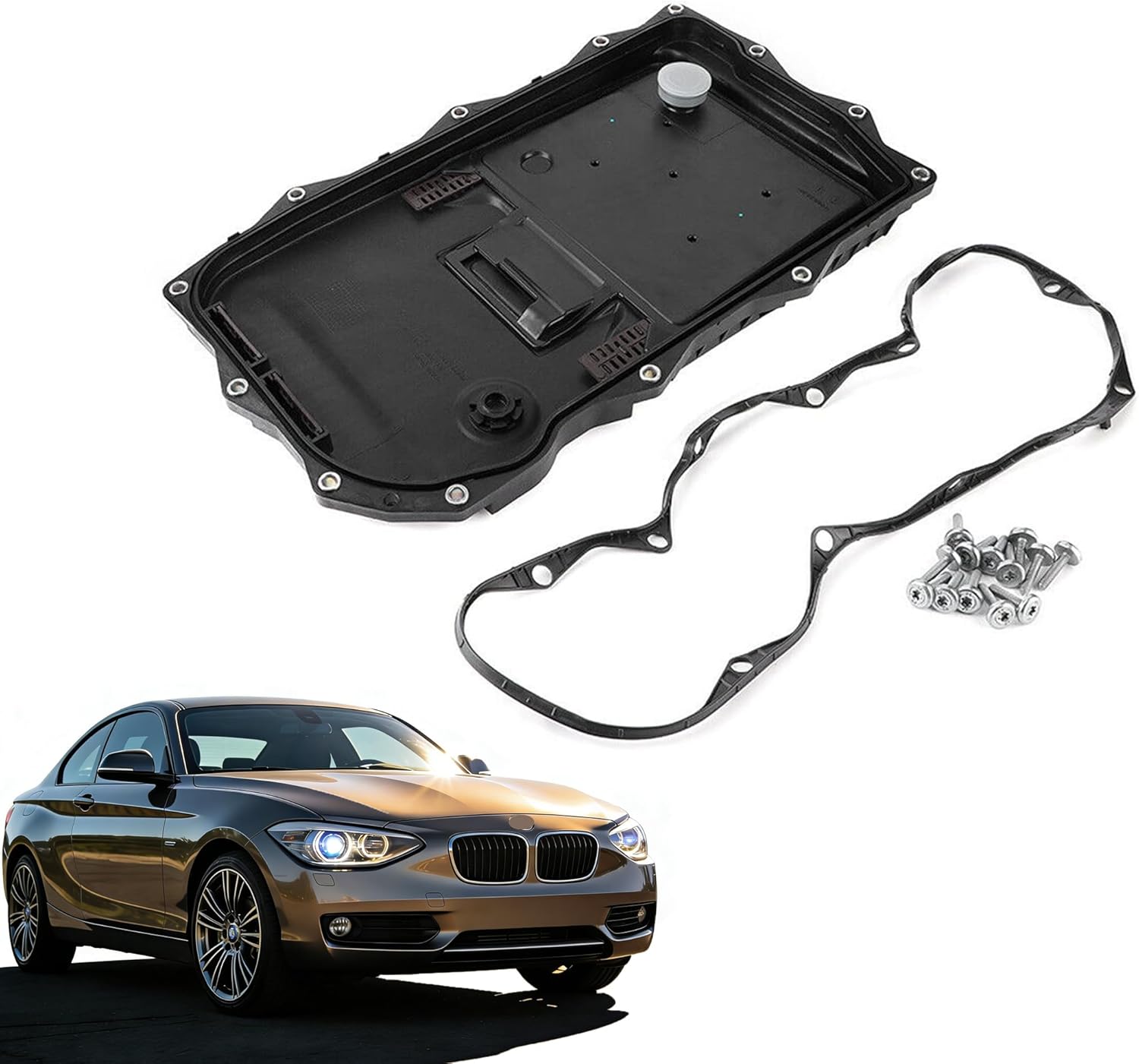

7. DEEGOOLY Transmission Filter Oil Pan Kit (24118612901)
| Brand | DEEGOOLY |
|---|---|
| Model | 24118612901 Automatic Transmission Filter Oil Pan Kit |
| Manufacturer Part Number | DEE-24118612901 |
| Compatible Models | Fits select BMW models listed in product description |
This DEEGOOLY transmission oil pan kit replaces the factory pan and filter assembly to restore a proper transmission fluid reservoir and filtration on compatible BMW models. It is supplied as a complete pan with filter, gasket and hardware for installation beneath the transmission and is intended to be installed by a technician to ensure correct torque and sealing. Buyers report the kit fits well on the specified BMW applications and that the supplied bolts and gasket can simplify the swap compared with sourcing parts individually. Some users praised build quality comparable to factory replacements, and the kit can be useful when repairing leaks or performing a fluid change. A small number of installs experienced gasket leaks or drain plug issues when not torqued to spec, and one report described reduced fluid return after removal, suggesting careful installation and inspection are important. If you want a budget-conscious direct replacement for maintenance or leak repair, this kit covers core needs; however, professional installation is recommended to avoid sealing or fluid-level problems.
Best for: Risk-averse mainstream buyers seeking a straightforward, cost-conscious replacement that restores serviceability and addresses leaks without chasing multiple parts.
Less Ideal for: Owners who prioritize factory-brand parts or who plan to perform extensive transmission work beyond a pan/filter swap should consider OEM or premium alternatives.
- Direct-fit design for the listed BMW transmission applications to simplify replacement.
- Includes pan, filter, gasket and mounting hardware for a one-purchase repair.
- Multiple customer reports of good material quality and proper fit on BMW models.
- Lower-cost alternative to sourcing OEM parts separately, useful for scheduled service or leak repairs.
- Some users reported gasket leaks or drain-plug issues when bolts were not torqued correctly.
- A few installations noted reduced drained fluid volume, indicating possible internal differences from factory pans.
Verdict: A complete, budget-friendly direct-replacement pan and filter kit for listed BMW applications that works well when installed correctly but benefits from professional installation to avoid sealing or fluid issues.
Choosing the Right BMW 5 Series Transmission Pan: Key Factors to Consider
Fitment And Compatibility
Precise fitment is critical because the pan must align with bolt holes, drain locations, and the transmission housing to prevent leaks and ensure proper fluid flow. A pan designed for the BMW 5 Series will match the factory mounting pattern and maintain correct clearance for crossmembers and exhaust components.
Compatibility also covers whether the pan accepts the factory gasket or a replacement gasket and if any additional hardware or sealing compound is required. Poor fitment can cause ongoing leaks or stress the transmission case, so prioritize pans with clear vehicle-specific fitment data.
Material And Corrosion Resistance
Pans are commonly made from stamped steel, stamped aluminum, or cast aluminum, and each material affects durability and corrosion resistance. Steel pans are robust and economical but may need protective coatings to avoid rust, while aluminum pans resist corrosion and often dissipate heat better.
Consider the local climate and exposure to road salt. Look for pans with corrosion-resistant finishes or coatings and construction methods that reduce the risk of warping under thermal cycling. Material choice impacts long-term service life and appearance under the vehicle.
Sump Capacity And Heat Dissipation
A deeper sump increases fluid capacity, which can help cool the transmission by providing more fluid to absorb and carry heat. Some pans include fins or increased surface area to improve passive heat dissipation, which can be beneficial during heavy use or towing.
Balance added capacity with clearance constraints; a very deep pan might reduce ground clearance or require fitment verification. Consider how the pan's shape and surface treatment contribute to cooling without introducing debris traps or complicating installation.
Serviceability And Drain Features
Service-friendly features like built-in drain plugs, accessible magnets, or removable screens simplify routine transmission fluid changes and filter servicing. A drain plug reduces the need to remove the entire pan during a fluid change, limiting mess and saving time.
Verify the drain plug location and thread type, and whether the pan accommodates the factory filter and magnet. Ease of service affects maintenance frequency and the total time and effort required for fluid and gasket replacement.
Gasket And Seal Compatibility
Gasket design and sealing surfaces are essential to prevent leaks. Some pans use a reusable machined surface with a replaceable gasket, while others rely on a bead of sealant. The right approach depends on whether you prefer a replaceable gasket or a sealant-only installation.
Ensure the pan is compatible with standard replacement gaskets for the BMW 5 Series, and consider whether the pan requires specific torque specs during installation to compress the sealing surface correctly without warping.
Installation And Bolt Torque Considerations
Correct installation practices, including following specified bolt torque sequences and values, prevent leaks and avoid distorting the pan flange. Some pans have thicker flanges or captive bolts to simplify alignment during installation.
Check whether the pan requires special torque specs compared to the factory part and whether the design facilitates an even seal. Ease of access to mounting bolts affects whether you can perform the installation in a driveway or need a lift and additional tools.
How We Chose the Best BMW 5 Series Transmission Pan
We focused on pans designed specifically for the BMW 5 Series to ensure correct fitment and oil routing. Primary evaluation criteria included build material and corrosion resistance, sump capacity and heat dissipation, presence and design of a drain or service features, and compatibility with factory gaskets and hardware. We also assessed ease of installation, including bolt access and standard torque requirements, plus filter and magnet placement where applicable.We excluded universal or loosely fitting pans and any designs that required substantial transmission modification. Also omitted were pans lacking clear fitment data or aftermarket units without documented manufacturing tolerances. The result is a list of pans that meet concrete standards for durability, serviceability, and correct fitment specific to the BMW 5 Series.
Our full evaluation process is outlined in our review methodology.
FAQ
How often should I inspect the transmission pan on a BMW 5 Series?
You should visually inspect the transmission pan and surrounding area during regular maintenance intervals, such as when you change engine oil or perform other routine checks. Look for signs of fluid seepage, damaged gasket material, or loose bolts. Regular inspections help catch small leaks before they become larger problems.
Can I install a transmission pan with a drain plug myself?
Many drain-equipped pans are designed for straightforward installation by a competent DIYer, provided you have basic tools and follow the correct torque specifications. Ensure the vehicle is safely supported, the mating surfaces are clean, and the gasket or sealant is applied per instructions. If you are unsure about torque values or access, professional installation is a reasonable option.
Will a deeper sump pan affect vehicle clearance?
A deeper sump increases fluid capacity but can reduce ground clearance, which matters on low vehicles or rough roads. Consider vehicle use and inspect clearance around crossmembers and exhaust routing. In some cases, a moderate-depth pan with improved cooling fins offers a better balance between capacity and clearance.
Do aftermarket pans require a different gasket or sealant?
Some aftermarket pans use the same gasket profile as the factory pan, while others rely on a specific replacement gasket or a bead of sealant. Check the pan's compatibility notes and installation instructions to confirm whether you need a dedicated gasket or any particular sealant type. Using the correct gasket method reduces the chance of leaks.
Can upgrading the pan help with transmission overheating?
Upgrading to a pan with greater capacity or improved heat dissipation can aid in cooling by increasing fluid volume and surface area. While a pan upgrade can reduce operating temperatures somewhat, it is usually one part of a broader strategy that may include improved cooling lines or radiators for more significant thermal control.
What should I do if I find a transmission pan leak?
If you find a leak, first confirm the source by cleaning the area and rechecking after a short drive. Tighten bolts to the correct torque in the recommended sequence if they are loose. If leaks persist, inspect the gasket and pan flange for damage and consider replacing the gasket or pan. Persistent or large leaks warrant professional diagnosis to rule out internal damage or warped surfaces.
Conclusion
Choosing the right BMW 5 Series transmission pan means prioritizing precise fitment, durable materials, and features that make servicing easier. Think about whether you need extra fluid capacity or a drain plug, and weigh those benefits against clearance and installation complexity.Focus on pans that clearly document vehicle compatibility, accept standard gaskets or provide clear sealing instructions, and include service-friendly touches. That approach will reduce the chance of leaks and make routine transmission maintenance faster and more reliable.
