Picking the right GMC Terrain oil pan matters because it directly affects engine protection, leak prevention, and how easy routine maintenance will be. A wrong choice can lead to fitment problems, recurring leaks, or harder fluid changes. This guide highlights seven shortlisted oil pans that meet common needs for Terrain owners. We focused on fit, material quality, drain access, and corrosion resistance when narrowing the list, so you can quickly find options that suit repair or replacement scenarios.
Looking for other parts? See all GMC Terrain parts & accessories.
Top Picks at a Glance
| Best overall The best all-around choice for most situations | labwork 302-1 Aluminum Replacement Oil Pan Kit for GM LS V8 Engines |  |
| Best Value The sweet spot between price and what you get | WFLNHB Aluminum Replacement Oil Pan for GM V8 4.8L/5.3L/6.0L |  |
| Best budget The cheapest option that still gets the job done reliably | GM Genuine Parts 12676340 Engine Oil Pan |  |
| Most Popular A crowd favorite that many people choose with confidence | A-Premium Aluminum Engine Oil Pan with Drain Plug (Compatible with GMC Terrain) |  |
| Best Seller A high-volume bestseller chosen again and again | KAX Engine Oil Pan (fits select Chevrolet and GMC 1.4T/1.5T/1.5L models) |  |
1. labwork 302-1 Aluminum Replacement Oil Pan Kit for GM LS V8 Engines
| Fitment | GM LS Gen III/IV V8 (4.8L–6.2L) swap applications |
|---|---|
| Manufacturer | labwork |
| Item model number | 302-1 |
| Voltage | 940 Volts |
This labwork 302-1 aluminum oil pan kit is built as a budget-friendly replacement for GM LS Gen III/IV V8 installations and classic GM trucks used in swaps. It collects and stores engine oil, relocates the pickup, and comes with a pickup tube, bolts, a block‑off plate, and an o‑ring to simplify installation into common LS swap applications. In practice it lowers the oil pan clearance compared with many stock pans and has reviewers reporting good fit for LS swaps without cutting or major modification. Buyers will appreciate the included hardware and the lower profile for improved ground clearance on trucks and custom installs. The casting and finish are utilitarian rather than premium, and multiple reviews note the gasket and some threaded fittings may need attention or replacement, plus occasional internal or casting cleanup before installation. A few users reported problematic drillings or plugged oil passages, so inspect the pan and fittings carefully before fitting. For a balanced buyer wanting a functional, lower-cost GM LS swap oil pan the kit delivers value but requires basic prep and verification before assembly.
Best for: Balanced buyers who want an affordable, ready‑to‑install aluminum oil pan for GM LS V8 swaps or classic GM truck projects and are willing to do light prep work.
Less Ideal for: Those seeking a premium, show‑quality replacement or buyers who cannot check or perform minor machining or sealing fixes should consider higher‑end factory‑quality options instead.
- Includes pickup tube, block‑off plate, bolts and o‑ring to speed installation for LS swaps
- Aluminum construction and lower profile helpful for ground clearance in truck or swap installs
- Multiple users report straightforward fit with common LS engines and minimal trimming on many vehicles
- Casting and finish are inconsistent and may require cleanup or repair before use
- Some supplied fittings and gasket are low quality or mismatched and may need replacement
- Rare reports of restricted oil passages or poor drilling require inspection before installation
Verdict: A value-oriented aluminum oil pan kit that fits common GM LS swap engines and includes installation hardware but needs pre-install inspection and occasional cleanup.
2. WFLNHB Aluminum Replacement Oil Pan for GM V8 4.8L/5.3L/6.0L
| Fitment range | GM V8 4.8L/5.3L/6.0L models (1999–2006 era vehicles listed) |
|---|---|
| Material | Aluminum |
| Manufacturer part number | 1-8067072-674776 |
This WFLNHB aluminum oil pan replaces the factory oil pan on compatible GM V8 engines and provides the same basic function: storing and supplying engine oil to the crankshaft and rods while sealing to the bottom of the engine. Built from aluminum, it resists corrosion and tolerates high under-hood temperatures better than many stamped steel pans. Fitment notes and customer reports indicate accurate bolt hole locations and smooth sealing surfaces, so installation is straightforward for a competent technician and it accepts standard gaskets and drain plug hardware. Some users reported a slightly narrower oil passage that may need minor porting for optimal flow on modified engines, but for stock setups the pan performs like a factory-quality replacement and several buyers noted no leaks after installation. Expect a plain finish without cosmetic extras and plan for routine gasket replacement during install to ensure a reliable seal.
Best for: Practical optimizers who want a cost-effective, factory-quality replacement that restores reliable oil containment without paying for premium features.
Less Ideal for: Owners seeking high-performance oiling upgrades, custom baffling, or cosmetic finishes should consider purpose-built aftermarket pans instead.
- Aluminum construction offers corrosion resistance and better heat tolerance than steel pans
- Casting and seal surfaces reported as smooth and accurately machined for good gasket sealing
- Direct-replacement bolt pattern for compatible GM V8 engines simplifies installation
- May have a slightly narrower oil transition passage that some users needed to open for high-flow applications
- No cosmetic finish or integrated baffles specified compared with premium aftermarket pans
Verdict: A budget-friendly, aluminum factory-style replacement that restores reliable oil containment for compatible GM V8 engines but is not a performance upgrade.

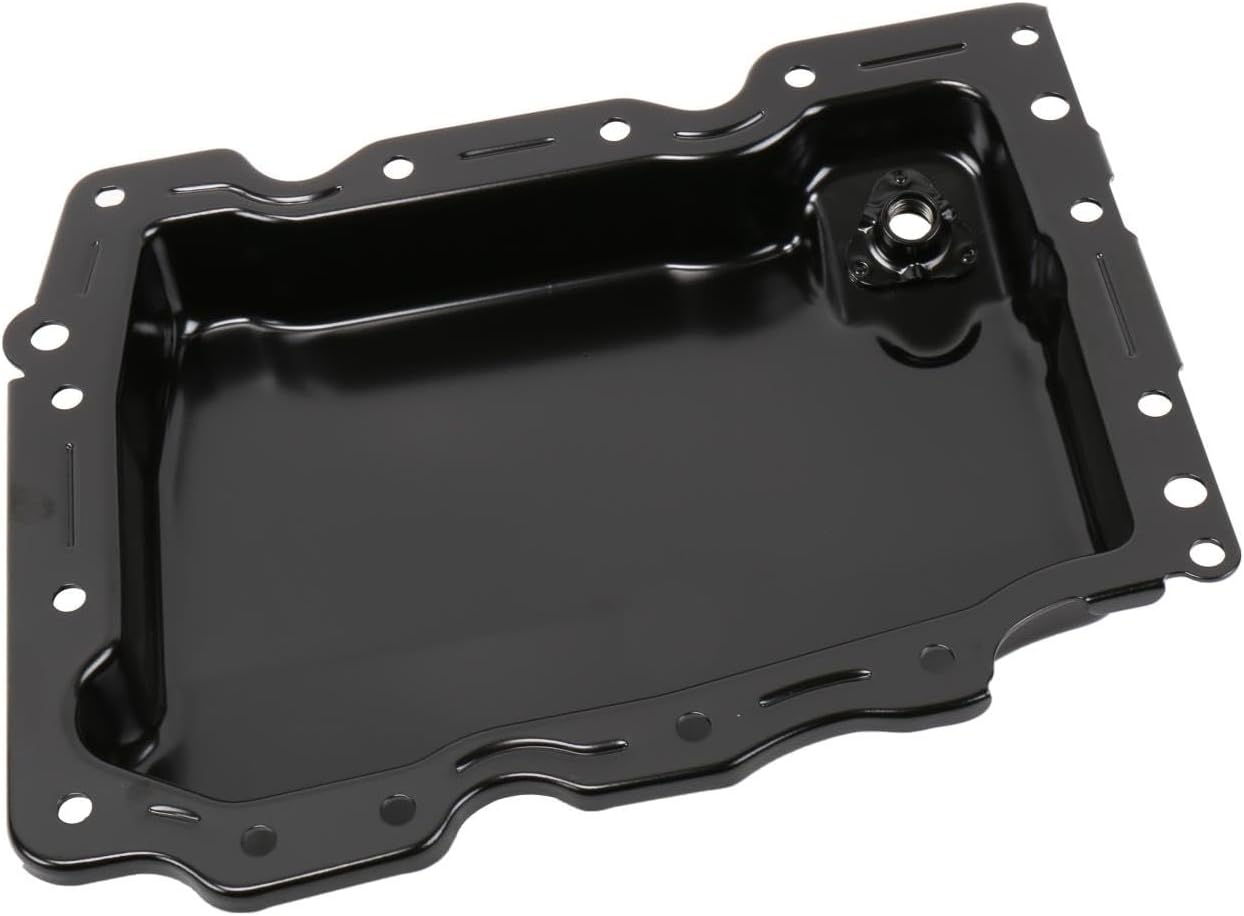

3. GM Genuine Parts 12676340 Engine Oil Pan
| Brand | GM GENUINE PARTS |
|---|---|
| Model | GM Original Equipment |
| Exterior | Machined |
| Manufacturer Part Number | 12676340 |
This GM Genuine Parts engine oil pan is a factory-quality replacement intended to restore the factory fit and function on compatible GM powertrains. It installs in place of a damaged or corroded pan and is typically used during routine engine repairs or after a leak or impact. The machined exterior and GM validation signal consistent sealing surfaces and bolt-hole alignment, which helps simplify gasket installation and reduce the risk of oil leaks. As a budget-focused option it provides the reassurance of a brand-backed, vehicle-specific part rather than a generic aftermarket alternative. Limitations are its narrow scope of use: it is a direct-fit part for GM applications and does not include auxiliary hardware or gaskets, so you should confirm fitment and plan for any extra fasteners or sealant. For owners seeking a straightforward, factory-style replacement, this pan covers the basics reliably without premium aftermarket extras.
Best for: Budget-conscious owners focused on restoring factory reliability with a straightforward, vehicle-specific replacement part for routine repair jobs.
Less Ideal for: People seeking upgraded performance pans with additional capacity, baffling, or integrated features should consider aftermarket performance options instead.
- Factory-validated design for reliable fit and alignment with GM engines
- Machined exterior provides consistent sealing surfaces
- Backed by GM Genuine Parts brand for parts traceability and compatibility
- Does not include gasket, drain plug hardware, or installation accessories
- Limited to specific GM applications and must be checked for exact fitment
Verdict: A cost-conscious, factory-quality oil pan replacement that prioritizes correct fit and basic reliability over aftermarket upgrades.
4. A-Premium Aluminum Engine Oil Pan with Drain Plug (Compatible with GMC Terrain)
| Material | Aluminum |
|---|---|
| Engine Type | L4 2.0L/2.2L/2.4L |
| Drain Plug | Included |
| Bolt Holes Quantity | 17 |
This aluminum oil pan replaces the factory sump on many GM L4 engines and is designed to fit vehicles like the GMC Terrain. It installs as a direct replacement using the existing bolt pattern and includes a drain plug so you can complete an oil change without sourcing extra parts. The machined sealing surfaces and factory-style bolt hole layout make alignment during installation straightforward for a home mechanic or quick shop job. Because it is cast from aluminum it resists corrosion better than stamped steel pans and should hold up to normal road use. The pan does not include gasket material so you will need a new gasket or gasket maker at installation, and some buyers noted the supplied drain plug lacks a rubber seal which may prompt reuse of the OEM plug or adding a crush washer. Overall it is a practical, convenience-focused replacement that gets a disabled or leaking pan back to service with minimal fuss.
Best for: Buyers who prioritize convenience and quick repairs and want a ready-to-install, factory-style replacement that gets their GMC Terrain back on the road with minimal parts hunting or extra trips.
Less Ideal for: Drivers seeking a premium billet or baffled performance oil pan for track use or high-performance builds should consider purpose-built alternatives rather than this direct replacement.
- Direct-fit design for compatible GM 4-cylinder engines simplifies installation
- Aluminum construction offers improved corrosion resistance over stamped steel
- Includes drain plug so oil changes can be completed immediately
- Machined sealing surfaces and correct bolt-hole pattern aid alignment during install
- Gasket is not included so a separate gasket or sealant is required
- Supplied drain plug does not include a rubber seal which may require using the vehicle’s original plug or adding a washer
Verdict: A practical, convenience-focused aluminum replacement oil pan that fits compatible GMC Terrain 4-cylinder engines and includes a drain plug for immediate service.
5. KAX Engine Oil Pan (fits select Chevrolet and GMC 1.4T/1.5T/1.5L models)
| Manufacturer | KAX |
|---|---|
| Model | Engine Oil Pan |
| Exterior | Machined |
| OEM Part Number | 12637773,264622 |
This KAX engine oil pan is a direct replacement designed to collect and store engine oil, help with heat dissipation, and protect the crankcase from debris. It is typically used when the factory pan is damaged, leaking, or during engine repairs where the pan is removed. The pan is manufactured to match referenced part numbers and is described as machined with a durable, thickened construction that resists corrosion and impacts. Practical benefits include an OEM-style fit for the listed Chevrolet and GMC 1.4T/1.5T applications, a straightforward bolt-on installation, and a build that reviewers report fits well and holds up under normal use. Limitations to plan for are that the kit does not include a drain plug, gasket, or mounting hardware, so you will need to supply those parts and any exhaust or j‑pipe gaskets required for access. Some buyers reported packaging dents on arrival, so inspect the pan for damage before installation.
Best for: Risk‑averse mainstream buyers who want a straightforward, factory‑style replacement for damaged or leaking oil pans on GMC Terrain and similar Chevy 1.4T/1.5T vehicles without experimenting with performance parts.
Less Ideal for: Buyers who need a complete hardware kit or prefer an upgraded performance oil pan with baffles or internal baffling features should consider other options.
- Made to match manufacturer part numbers for intended Chevy and GMC applications
- Thickened, machined construction aims for corrosion and impact resistance
- Reported to bolt on and fit like the factory pan for listed models
- Helps collect oil and assist heat dissipation as a factory replacement
- Does not include drain plug, gasket, or mounting hardware
- Packaging has been reported dented in some shipments
Verdict: A practical, factory‑style replacement oil pan that fits the listed Chevrolet and GMC small‑turbo models and is built for durable, direct installation.
Choosing the Right GMC Terrain Oil Pan: Key Factors to Consider
Fitment and Bolt Pattern
Correct fitment guarantees the oil pan mates cleanly to the engine's block without requiring modification. Bolt hole alignment and flange flatness influence how well the gasket seals and how easy it is to torque bolts to specification.
Mismatched patterns can cause installation delays or stress points that lead to leaks. Choose pans with documented compatibility with the GMC Terrain's engine variant and confirm torque recommendations for a reliable seal.
Material and Corrosion Resistance
Oil pans commonly use stamped steel, cast aluminum, or fabricated steel. Material choice affects weight, dent resistance, and how the pan responds to road salt and grime.
A protective coating or anodizing extends service life in corrosive environments. Consider the local climate and exposure to road chemicals when prioritizing material and finish.
Drain Access and Serviceability
Easy access to the drain plug and sufficient clearance for a drain pan make routine oil changes quicker and neater. Some pans locate the drain plug in tight spots or use nonstandard fittings that complicate service.
Look for pans with accessible drain plug placement and standard thread sizes so you can maintain service intervals without removing the pan frequently.
Gasket Interface and Mating Surface
A flat, uniform flange and a compatible gasket design reduce the chance of oil seepage at the joint. The pan's mating surface should be free from warpage and designed to accept either a reusable or replaceable gasket with even compression.
Consider whether the pan uses an integrated gasket rail, RTV sealant, or a replaceable gasket and how that choice aligns with your maintenance preferences and mechanical skill level.
Depth and Oil Capacity
Pan depth affects oil capacity and how far the pickup sits from the bottom of the sump. A deeper pan can increase capacity and help with cooling but may reduce ground clearance and be more vulnerable to impacts.
Evaluate whether a higher-capacity pan is necessary for towing or performance use versus the risk of scraping on uneven roads.
Reinforcement and Impact Protection
Reinforced sections or ribbing help the pan resist dents from road debris and maintain sealing surfaces over time. Some designs include skid-friendly shapes or thicker metal in vulnerable areas.
If you drive on rough roads or encounter debris often, prioritize pans with added reinforcement to avoid deformation that can cause leaks or hamper pickup alignment.
How We Chose the Best GMC Terrain Oil Pan
We focused on factors that matter to GMC Terrain owners replacing or upgrading the engine sump. Primary evaluation criteria included fitment accuracy to factory mounting points, material and coating durability against corrosion, drain accessibility for routine service, and gasket interface design to minimize leak risk. We also considered manufacturing tolerances, hole and flange alignment, and reinforcement where contact with road debris is common. Products were filtered for compatibility with the specified vehicle and for clear manufacturer specifications rather than generic universal fit claims. We excluded pans lacking documented fitment data, pans intended only for racing without provisions for street service, and any listings with unclear material or finish information. Final selections balance real-world serviceability with long-term durability.
Our full evaluation process is outlined in our review methodology.
FAQ
How do I know if my GMC Terrain oil pan is leaking or just a gasket seep?
Check the leak location and pattern. A slow, uniform seep along the mating surface often indicates a gasket issue, while a concentrated drip from a distinct point may indicate a pan crack or damage. Clean the area and monitor after running the engine briefly to trace the source more accurately.
Can I replace the oil pan gasket instead of the entire oil pan?
Often a gasket replacement resolves leaks when the pan flange and bolt holes are in good condition. If the pan is dented, cracked, or warped, replacing the entire pan is usually the better option. Inspect the flange flatness and threads before deciding.
What torque should I use for oil pan bolts on a GMC Terrain?
Bolt torque depends on the engine and bolt size. Refer to the vehicle service manual for the specified torque values and recommended tightening pattern. Using the correct sequence and torque prevents flange distortion and helps ensure a reliable seal.
Is an aftermarket oil pan a good choice for a repair?
Aftermarket pans can offer equal or better value when they match factory fitment and use quality materials. Choose a pan with clear fitment data and corrosion-resistant finishes. Avoid pans that require modification or lack proper drain access.
How much extra oil capacity will a deeper oil pan provide?
Capacity gains vary by design and depth; some deeper pans add a modest amount of extra volume while others provide more significant increases. Consider how additional capacity affects pickup location, oil circulation, and ground clearance before selecting a deeper pan.
Conclusion
When choosing a GMC Terrain oil pan, prioritize verified fitment, a flat mating surface, and corrosion-resistant materials. Balance serviceability features like drain access with any capacity or reinforcement gains you need for driving conditions. Accept that deeper or reinforced pans may offer benefits for performance or rough roads but can affect clearance and pickup placement. Focus on the dimensions and specifications that align with your maintenance habits and the Terrain's intended use.
