Picking the right BMW X5 brake master cylinder matters because it directly affects pedal feel, stopping consistency, and system sealing. A poor fit or a leaking master cylinder can lead to reduced braking performance and added repair time. This guide presents seven shortlisted options selected for their relevance to BMW X5 owners and focuses on the attributes that matter in everyday driving and emergency stops. We evaluated each pick for fitment precision and sealing durability, along with build quality and installation practicality. Read on to see our top choices and the criteria we used to vet them.
Looking for other parts? See all BMW X5 parts & accessories.
Top Picks at a Glance
| Best Overall The best all-around choice for most situations | doietc M630769 Brake Master Cylinder Assembly for BMW X5/X6 |  |
| Best Quality Built to a higher standard if you want something more solid | Beck/Arnley Brake Master Cylinder 072-9870 for 2001-2006 BMW X5 |  |
| Best Value The sweet spot between price and what you get | PHILTOP Brake Master Cylinder Assembly for BMW X5 (2001–2006) |  |
| Best Budget The cheapest option that still gets the job done reliably | AngyMeck Brake Master Cylinder for BMW 525i/528i/530i/540i/740i/740il/750il/M5/X5 (1998-2003) |  |
| Highest Rated A top-rated pick with lots of positive feedback | URO Parts Brake Master Cylinder 34311165544 |  |
| Most Popular A crowd favorite that many people choose with confidence | A-Premium Brake Master Cylinder for BMW X5/X6 (Replaces 34336772930) |  |
| Best Seller A high-volume bestseller chosen again and again | Garage-Pro Brake Master Cylinder for BMW X5 (2001–2006) |  |
1. doietc M630769 Brake Master Cylinder Assembly for BMW X5/X6
| Manufacturer | doietc |
|---|---|
| Model | M630769 |
| Manufacturer Part Number | M630769 |
| OEM Part Number | M630769 |
This doietc M630769 brake master cylinder is a full replacement unit intended for BMW X5 and X6 models from the model years listed, replacing the factory master cylinder to restore hydraulic brake pressure and pedal feel. It is supplied as a complete assembly made from new cast materials rather than remanufactured cores, which simplifies installation and reduces the risk of wear-related failures. Typical use is a one-to-one swap when the original master cylinder leaks, has an internal seal failure, or the brake pedal becomes soft; the part includes the same mounting and hydraulic ports as the factory piece to work with the vehicle's existing lines and ABS system. Practical benefits include reduced downtime because it arrives ready to install and the manufacturer states each unit is tested before shipment. Limitations are that fitment is limited to the specific X5/X6 year ranges listed and buyers should verify exact part cross-reference numbers before ordering to ensure compatibility with ABS and reservoir variants on their vehicle.
Best for: Balanced all-round BMW owners who want a straightforward, factory-style replacement to restore brake feel and reliability without chasing remanufactured cores or complex parts sourcing.
Less Ideal for: Not a good choice for owners with nonstandard brake system modifications or for those who need multi-vehicle interchangeability beyond the listed X5/X6 models.
- Plug-and-play replacement designed to match factory mounting and hydraulic ports for listed BMW X5/X6 models
- Built from new cast materials rather than remanufactured cores, reducing risk of premature internal wear
- Shipped as a complete assembly so installation does not require sourcing additional components
- Manufacturer reports 100% testing and inspection prior to delivery
- Compatibility limited to the specific BMW X5/X6 year ranges listed so exact fit must be confirmed
- Manufacturer warranty and support details are vendor-provided and may vary
Verdict: A ready-to-install, new-material master cylinder assembly made to replace the factory unit on the specified BMW X5 and X6 models for straightforward restoration of braking performance.
2. Beck/Arnley Brake Master Cylinder 072-9870 for 2001-2006 BMW X5
| Brand | Beck/Arnley |
|---|---|
| Model | 072-9870 |
| Vehicle Fit | BMW X5 (2001-2006) |
| Exterior | Machined |
This Beck/Arnley master cylinder is a factory-quality replacement designed specifically for BMW X5 (2001-2006). It supplies the brake hydraulic pressure to the system and comes with reservoir and sensor provisions where applicable, which simplifies installation compared with sourcing separate components. The part is machined and built to meet foreign nameplate specifications so it should drop into the original mounting points and work with the vehicle's existing brake lines and sensors. For a performance-oriented buyer this unit offers confidence in consistent pedal feel and dependable pressure generation when paired with a properly functioning ABS and brake hardware. Practical benefits include application-specific fit, factory-style function, and quality construction aimed at durability. Limitations are that it is a direct replacement rather than an upgraded performance unit, so drivers seeking increased pedal modulation or motorsport-spec hardware will need aftermarket performance master cylinders or custom solutions.
Best for: Performance-oriented BMW X5 owners who prioritize reliable, factory-equivalent braking feel and want a durable direct-fit replacement that maintains consistent pedal response under spirited driving.
Less Ideal for: Drivers seeking a race-spec or high-performance master cylinder with altered bore size or custom pedal characteristics should consider dedicated performance upgrades instead.
- Designed to match factory form, fit and function for the specified BMW X5 years
- Includes reservoir and sensor provisions where applicable for easier installation
- Machined exterior and quality construction aimed at long-lasting performance
- Application-specific part reduces fitment issues and installation time
- Not a performance-upgrade master cylinder for racing or track tuning
- Limited to the 2001–2006 BMW X5 application and not a universal or multi-vehicle part
Verdict: A factory-quality, application-specific master cylinder that restores original brake feel and fit for BMW X5 (2001–2006).
3. PHILTOP Brake Master Cylinder Assembly for BMW X5 (2001–2006)
| Fitment | BMW X5 2001-2006 |
|---|---|
| Material | ZL101A Aluminum |
| Number of Outlets | 2 |
| Rearward Outlet Size | M12 x 1.0 |
This PHILTOP brake master cylinder is a new aftermarket replacement designed to fit BMW X5 models from 2001 through 2006. It replaces the factory unit and connects to the vehicle as a direct-fit component, offering two outlets and a rearward outlet thread size of M12 x 1.0. Constructed from ZL101A aluminum with EPDM rubber seals, the unit resists glycol-based brake fluid corrosion and aims to match the original casting material for consistent fitment. The reservoir and brake fluid level sensor are not included, so installation requires reusing the factory reservoir or sourcing a separate reservoir and sensor if needed. For a practical owner seeking a cost-effective way to restore brake system function, this cylinder delivers expected hydraulic compatibility and corrosion-resistant components; however, buyers should plan for any additional parts or sensors not provided and allow for proper bench bleeding and professional installation to ensure safety.
Best for: Practical optimizers who want a lower-cost, functional replacement that restores brake hydraulic function on a 2001–2006 BMW X5 without paying for dealer parts and who are comfortable sourcing any missing small components.
Less Ideal for: Buyers seeking a fully assembled plug-and-play unit with reservoir and sensor included or those who prefer factory-sourced parts with manufacturer-backed guarantees should consider alternatives.
- Direct-fit replacement specifically listed for BMW X5 2001–2006 which simplifies installation planning
- Aluminum alloy housing designed to match original casting for reliable fit and mounting alignment
- EPDM rubber components resistant to glycol brake fluid to help maintain seal life
- Includes standard M12 x 1.0 rearward outlet thread that matches common BMW brake plumbing
- Does not include the brake fluid reservoir or fluid level sensor, requiring additional parts for a complete assembly
- Master cylinder is aftermarket and may require careful verification of bore sizing and fit before installation
Verdict: A cost-conscious, corrosion-resistant direct-fit master cylinder that restores brake hydraulics on BMW X5 (2001–2006) when you source the reservoir and sensor separately.
4. AngyMeck Brake Master Cylinder for BMW 525i/528i/530i/540i/740i/740il/750il/M5/X5 (1998-2003)
| Material | Aluminum |
|---|---|
| Package Contents | 1 Master Cylinder |
| Manufacturer | AngyMeck |
| Manufacturer Part Number | AM912328 |
| OEM Part Number | MC390633, M630070, 34311165544 |
This AngyMeck master cylinder is a direct replacement designed to restore brake hydraulic function on compatible BMWs from the late 1990s to early 2000s, including X5 models in the 2000-2001 range. It installs in place of the original unit and requires flushing the brake system and refilling with fresh fluid after fitting; the listing includes basic installation guidance to leave bleeder plugs in place during installation. The unit is aluminum construction and comes as a single complete master cylinder, which keeps the replacement simple for a DIYer or independent shop. As a budget option it gives the essential mechanical function without premium branding or extra features like pre-bled lines or upgraded seals. Buyers should expect to perform a full bleed and leak check and accept that long-term durability and fit precision may vary compared with factory-quality parts. For restorations or daily drivers seeking a low-cost repair, this provides a straightforward, economical path to get brakes working again.
Best for: Budget-conscious owners or independent mechanics who need an affordable, no-frills master cylinder to restore braking function on compatible BMW models and prioritize cost over OEM-level refinement.
Less Ideal for: Those seeking a factory-quality or performance-upgraded master cylinder for high-mileage or heavy-use X5s should consider higher-end or verified OEM replacements instead.
- Direct fit replacement specified for many BMW models including X5 2000-2001
- Aluminum construction reduces corrosion compared with some cast units
- Comes as a single ready-to-install master cylinder for simpler replacement
- Includes manufacturer part numbers for cross-referencing compatibility
- Sold as a basic budget unit so long-term durability and fit precision may be lower than factory-quality parts
- Requires a full system flush and bleed after installation since it is not pre-bled
Verdict: An inexpensive, direct-fit master cylinder that restores brake function for compatible BMWs while keeping repair costs low.
5. URO Parts Brake Master Cylinder 34311165544
| Manufacturer | URO Parts |
|---|---|
| Model | Brake Master Cylinder |
| Position | Rear |
| Exterior | Machined |
This URO Parts brake master cylinder is a direct-replacement unit intended for compatible 1998–2003 BMW models equipped with DSC. It replaces a leaking or failed master cylinder to restore proper brake fluid pressure and prevent interior fluid damage. The unit is manufactured to match factory dimensions and uses EPDM piston seals that resist glycol-based brake fluid, which helps with long-term durability. Typical installation is a straightforward swap for a competent DIYer or a shop, and the product includes a rear position, 3-port configuration required by certain DSC systems. Practical benefits include factory-fit tolerances and corrosion-resistant seals that reduce the chance of leaks. Reported issues in some reviews note intermittent quality control and potential functional differences that can trigger ABS/DSC warnings on select high-spec models, so careful fitment verification is important. Expect to replace a failed master cylinder with a part that mostly restores original braking function but be prepared to address system diagnostics if stability-control errors appear after installation.
Best for: Reliability-focused BMW owners who prioritize restoring factory braking performance with a value aftermarket replacement and are willing to verify fitment and address system diagnostics if needed.
Less Ideal for: Buyers seeking an exact factory-brand replacement for high-performance DSC systems who want guaranteed compatibility without any calibration or diagnostic work should consider higher-end factory-quality options.
- Made to factory dimensions for proper clearances and fitment
- EPDM piston seals resist glycol-based brake fluid and corrosion
- 3-port design matches DSC-equipped rear master cylinder requirements
- Machined exterior and premium positioning for direct replacement
- Some customers report quality control failures out of the box
- Can trigger ABS/DSC system errors on certain high-performance BMW variants
Verdict: A budget-conscious, factory-dimension replacement master cylinder designed to restore braking function on DSC-equipped BMWs while resisting brake fluid corrosion.

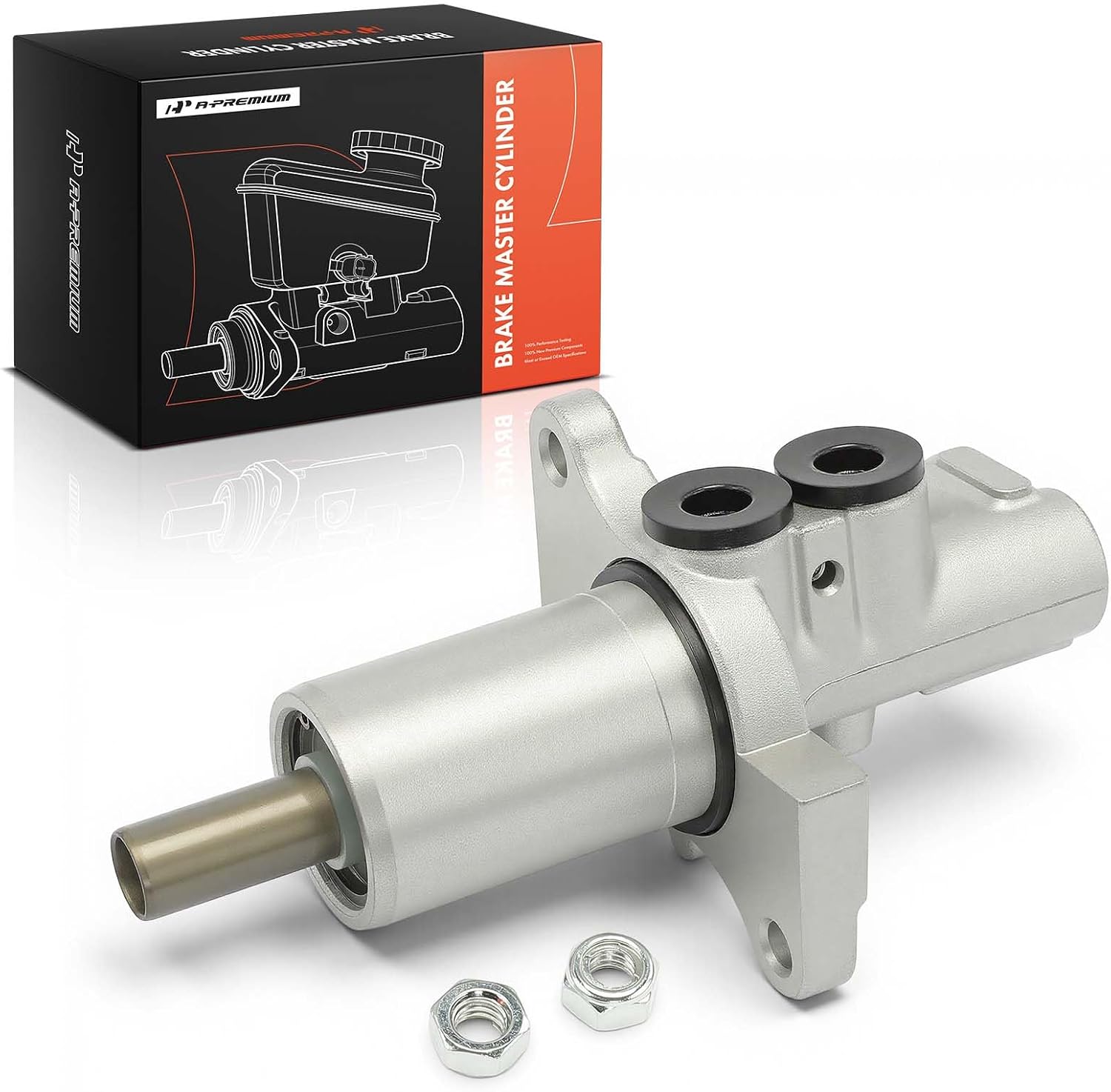

6. A-Premium Brake Master Cylinder for BMW X5/X6 (Replaces 34336772930)
| Compatible vehicles | BMW X5 2007-2018, X6 2008-2019 |
|---|---|
| Material | Aluminum Alloys 101 |
| Bore diameter | 0.875 inch |
| Outlet thread size | M12 x 1.0 |
This A-Premium brake master cylinder is a direct-replacement hydraulic unit intended for select BMW X5 and X6 model years. It installs where the original master cylinder sits and connects to the brake lines to supply pressure to the braking system; the listing notes the reservoir and sensor are not included so it is used with the vehicle's existing components. The unit is aluminum alloy construction with specified outlet thread sizes and bore diameter, and customers report straightforward fitment and firm brake feel when installed correctly. Benefits include factory-style mounting and compatibility with the referenced BMW part numbers, which simplifies a do-it-yourself swap or a quick shop replacement. Some buyers experienced inconsistent pressure from one port on rare units, so thorough bench testing and proper bleeding during installation are important. This product carries a one-year unlimited-mileage quality guarantee from the seller which provides added confidence for convenience-focused buyers who want a fast, plug-and-play fix rather than sourcing dealer parts.
Best for: Buyers who prioritize convenience and a quick, straightforward repair — people who want a near plug-and-play replacement to get their BMW X5 back on the road with minimal fuss.
Less Ideal for: Buyers seeking a complete assembly with reservoir and sensor or those who require guaranteed dealer-grade parts and inspection should consider alternatives.
- Direct-fit replacement for listed BMW X5/X6 models which simplifies installation
- Aluminum alloy construction for corrosion resistance and durability
- Includes correct outlet thread sizes and bore diameter to match brake lines
- One-year unlimited-mileage quality guarantee from the seller
- Reservoir and sensor are not included so reuse of factory components is required
- Some reported units failed to build pressure on one outlet, indicating occasional quality variability
Verdict: A convenient, aluminum alloy direct-replacement master cylinder that restores factory-style braking on the specified BMW X5 and X6 models.
7. Garage-Pro Brake Master Cylinder for BMW X5 (2001–2006)
| Manufacturer | Garage-Pro |
|---|---|
| Manufacturer Part Number | JCWRB27090002GP |
| OEM Part Number | 34316757743 |
| Compatible Vehicles | BMW X5 2001-2006 |
This Garage-Pro master cylinder is a direct-fit replacement built to restore the brake hydraulic system on BMW X5 models from 2001 through 2006. It replaces the factory unit and is used during brake system overhauls or when a failing master cylinder causes spongy pedals or brake fluid loss. The part lists multiple interchange numbers for compatibility and is presented as factory-quality replacement manufactured to industry production standards. In practice the unit simplifies a common DIY or shop repair because it matches OE mounting points and hydraulic ports, and it works with both AWD and FWD configurations noted for the X5. Practical benefits include re-establishing proper pedal feel and a straightforward swap without modifying brake lines. Limitations are typical for aftermarket hydraulic parts: buyers should bench-bleed and properly bleed the entire brake system during installation, and long-term durability can vary with driving conditions and installation technique.
Best for: Risk-averse mainstream BMW X5 owners who prioritize a straightforward, compatible replacement that restores reliable brake performance without aftermarket modifications.
Less Ideal for: Drivers seeking a performance-upgraded or racing-spec master cylinder should consider purpose-built alternatives rather than a factory-style replacement.
- Direct-fit design listed specifically for BMW X5 2001–2006 which eases replacement
- Interchange numbers provided for confirming compatibility with factory parts
- Manufactured to common automotive production standards for consistent quality
- Restores pedal feel and hydraulic function when replacing a worn or leaking unit
- Requires full system bleeding and bench-bleeding during installation
- Long-term durability depends on installation quality and operating conditions
Verdict: A straightforward, factory-style replacement master cylinder that restores reliable brake function for 2001–2006 BMW X5 models.
Choosing the Right BMW X5 Brake Master Cylinder: Key Factors to Consider
Fitment and Mounting
Accurate fitment is essential because the master cylinder must align with mounting studs, pushrod geometry, and brake booster or firewall locations. Mismatched mounting or port orientation can require modifications that compromise safety and increase labor time. Verify that the unit's mounting pattern and reservoir placement match your BMW X5 to ensure safe, straightforward installation.
Also confirm the pushrod length and threading align with the vehicle's pushrod and brake booster. Proper mechanical engagement prevents excess free play or preload on the pedal, which can otherwise change pedal feel and activation thresholds.
Sealing and Leak Resistance
Seals prevent brake fluid loss and contamination, so seal design and material are critical to long-term reliability. Look for units with high-quality cup seals and well-machined bore finishes to reduce the chance of fluid bypass or weeping around ports. Poor sealing leads to reduced braking efficiency and the need for frequent top-offs.
Consider how reservoir connections are sealed and whether there are redundant sealing features at critical joints. Good sealing reduces the risk of air ingress, which can cause a spongy pedal and inconsistent stopping behavior.
Internal Bore and Hydraulic Performance
The diameter and finish of the internal bore influence hydraulic pressure generation and pedal travel. A properly sized bore tuned to the BMW X5's brake caliper and rotor combination helps maintain expected pedal firmness and stopping force. Surface finish matters because rough bores accelerate seal wear and increase internal leakage over time.
Consistent, well-machined bores promote predictable response across temperature ranges and under repeated braking. Consider how the design balances pedal travel with pressure amplification to match the vehicle's original braking characteristics.
Material Quality and Corrosion Resistance
Master cylinders operated with hygroscopic brake fluid are exposed to moisture and corrosive conditions, so corrosion-resistant materials and coatings extend service life. Aluminum with proper anodizing, coated castings, or treated steel surfaces resist pitting and internal contamination. Corrosion can lead to seal groove damage and unexpected leaks.
Evaluate whether the reservoir and body materials are compatible with DOT-specified fluids and whether protective finishes are applied to ports and mounting surfaces. Durable materials reduce the likelihood of premature failure and the need for early replacement.
Serviceability and Parts Availability
A unit that allows for seal replacement or offers rebuild kits can be more cost-effective over the long term. Check whether common wear components such as seals and pushrod bushings are available separately and whether the design permits routine maintenance without complete replacement. Ease of bleeding the system and accessibility of bleed ports during installation also matters for a clean repair.
Consider whether replacement seals or rebuild components are sold in widely available kits and whether installation guides or OEM-style instructions exist. Good serviceability reduces labor time and simplifies future repairs.
Compatibility with Brake System Components
The master cylinder must work with the vehicle's proportional valves, ABS modulator, and caliper bore sizes to maintain correct brake balance. Mismatched internal displacement or porting can alter pressure distribution and change ABS behavior or rear/front bias. Confirm that the unit's internal displacement and port locations match BMW X5 system expectations.
Also assess whether reservoir capacity and port sizing accommodate the vehicle's brake line routing and volume requirements to avoid cavitation or insufficient fluid during prolonged braking events.
How We Chose the Best BMW X5 Brake Master Cylinder
Our shortlist was created by focusing on fitment accuracy, sealing and leak resistance, internal bore and reservoir design, material quality and corrosion resistance, and serviceability including availability of repair parts. We prioritized items specific to BMW X5 fitment to avoid compatibility issues and checked whether the unit's ports, mounting points, and reservoir orientation match common BMW X5 configurations. We looked for evidence of robust seals and corrosion-resistant finishes because those directly affect long-term leak performance and brake fluid contamination risk.We excluded any units without clear BMW X5 fitment documentation, ambiguous porting, or models missing replaceable seal components. Also excluded were units lacking adequate mounting or reservoir compatibility with BMW X5 brake systems. The resulting selections represent options that balance installation practicality, durable sealing, and straightforward maintenance for BMW X5 owners.
Our full evaluation process is outlined in our review methodology.
FAQ
What are common master cylinder symptoms I should watch for on a BMW X5?
Common signs often include a soft or sinking brake pedal, visible brake fluid near the master cylinder or under the vehicle, and reduced braking performance. You may also notice inconsistent pedal feel or a need to pump the pedal to build pressure. These symptoms usually indicate internal leakage, seal wear, or external leaks and should be inspected promptly.
Can a brake fluid leak at the master cylinder be repaired or must the unit be replaced?
It depends on the leak source. External leaks at fittings or reservoir connections can sometimes be repaired by replacing seals or tightening fittings. Internal leaks from worn bores or damaged seal grooves often require rebuilding with a seal kit or full replacement. Availability of rebuild kits and part condition determine the practical repair approach.
How difficult is BMW X5 master cylinder installation for a DIYer?
Installation difficulty varies with experience and available tools. The mechanical swap is straightforward if you have basic mechanical skills, proper wrenches, and a reliable method for bleeding the brake system. Expect moderate effort because careful routing, secure mounting, and thorough bleeding are required to restore safe braking performance.
Will replacing the master cylinder fix a soft brake pedal?
Replacing a failing master cylinder often resolves a soft or sinking pedal when the root cause is internal leakage or worn seals. However, a soft pedal can also result from air in the system, caliper issues, or fluid loss elsewhere. Proper diagnosis is important to ensure the master cylinder is the actual cause.
Should I consider a rebuild kit instead of buying a new master cylinder?
A rebuild kit can be a cost-effective option if the unit's bore and body are in good condition and replacement seals are available. Rebuilding preserves the existing unit but requires precision and a clean workspace. If the body is corroded or the bore is scored, a full replacement is usually the more reliable choice.
Conclusion
When choosing a BMW X5 brake master cylinder, prioritize correct fitment, robust sealing, and material durability to maintain pedal feel and avoid leaks. Balance hydraulic characteristics with the vehicle's braking components to preserve expected pressure and bias.Also consider serviceability and parts availability so future repairs are straightforward. Careful attention to these tradeoffs helps you select an option that delivers reliable stopping performance and reduces the chance of repeated repairs.
