When the HVAC fan in your Mazda CX-5 stops working across speeds or makes odd noises, the blower motor resistor is a common culprit. Choosing the right resistor matters because proper fitment and reliable thermal performance affect airflow control, cabin comfort, and system longevity. This guide lists the top shortlisted blower motor resistors for the Mazda CX-5 and explains the features and specifications that matter to owners.We evaluated candidates for correct fit, thermal durability, and electrical reliability to highlight options that restore consistent fan speeds. Read on to see the considerations that guided our picks and find the right replacement for your CX-5.
Looking for other parts? See all Mazda CX-5 parts & accessories.
Top Picks at a Glance
| Best Reviewed A top-rated pick with lots of positive feedback | A-Premium Front HVAC Blower Motor Resistor (replacement for Mazda B2000/B2200/B2600) |  |
| Most Popular A crowd favorite that many people choose with confidence | Dorman 973-011 Blower Motor Resistor |  |
| Best Quality Built to a higher standard if you want something more solid | Dorman 973-582 HVAC Blower Motor Resistor Kit |  |
| Best Budget The cheapest option that still gets the job done reliably | ACROPIX HVAC Blower Motor Resistor for Mazda MX-5 Miata (2006–2015) |  |
| Most Sold A high-volume bestseller chosen again and again | PUAMRPTS HVAC Blower Motor and Resistor Kit for Mazda CX-5 (2017–2022) |  |
| Best Value for Money The sweet spot between price and what you get | GM Genuine Parts Blower Motor Resistor (15-80879) |  |
| Best Overall The best all-around choice for most situations | Marsflex Blower Motor Resistor (APAC05074) |  |

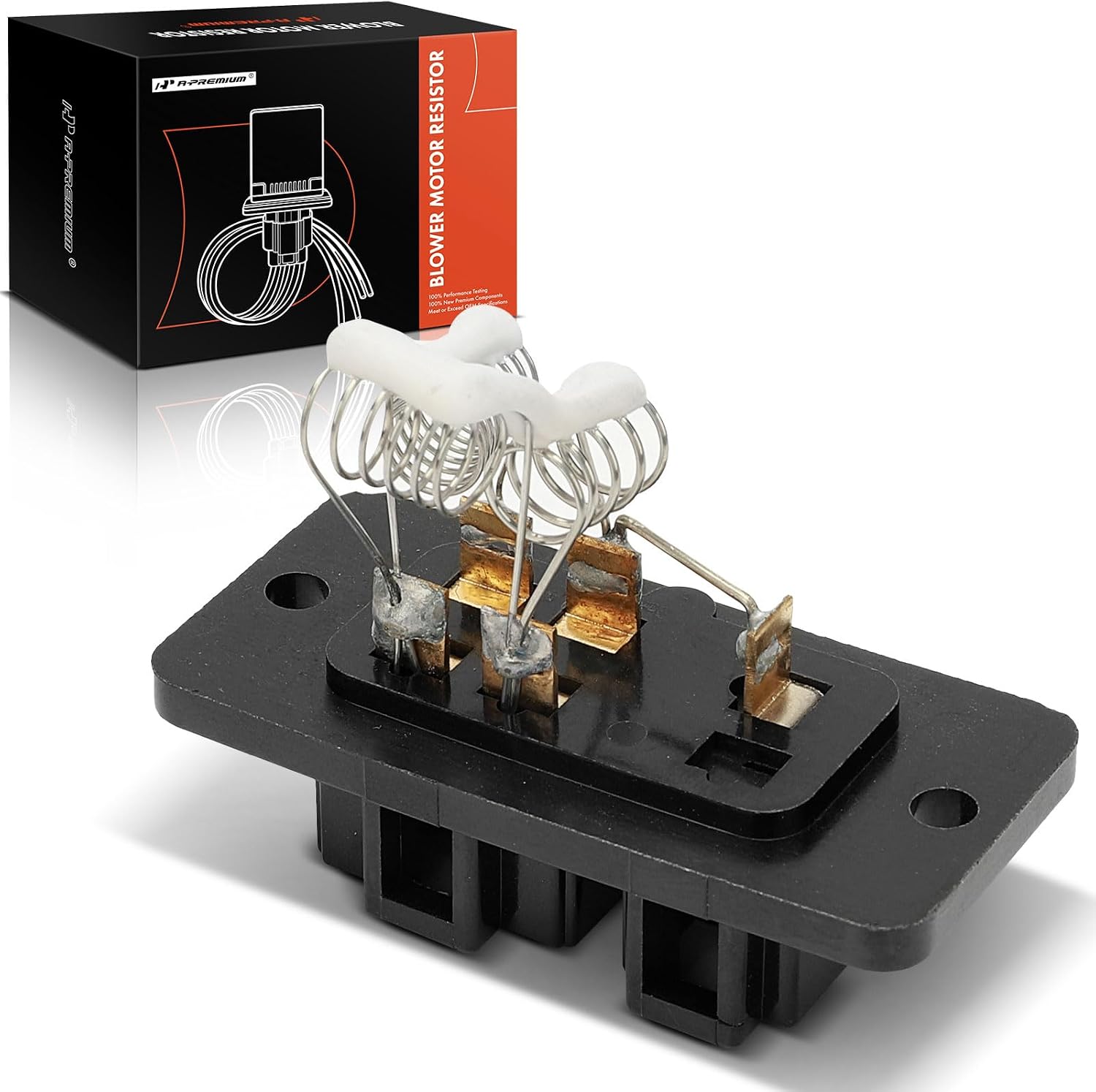

1. A-Premium Front HVAC Blower Motor Resistor (replacement for Mazda B2000/B2200/B2600)
| Compatible Models | Mazda B2000 1986-1987; B2200 1987-1993; B2600 1987-1993 |
|---|---|
| Bolt Hole Quantity | 2 |
| Connector Quantity | 2 |
| Terminal Quantity | 5 |
| Terminal Type | Blade/Pin |
This blower motor resistor replaces the factory resistor that controls blower fan speeds, restoring HVAC fan operation when a worn resistor causes loss of some or all speeds. It is intended for direct installation in compatible Mazda B2000, B2200, and B2600 models and uses the same bolt pattern and connector configuration as the original so you can swap it in without modifying the dash or wiring harness. Notable details include two bolt holes, a female connector with five terminals and blade-style pins, and a design targeted to match factory fit and function. In practice it returns stepped fan speeds quickly and keeps installation straightforward for a home mechanic with basic tools. Limitations are that it ships without a wiring harness and fits only vehicles with the specified Federal emissions configuration, so confirming part numbers or vehicle fitment is essential before purchase. The manufacturer also provides a one-year unlimited-mileage guarantee for added reassurance.
Best for: Reliability-focused buyers who prioritize restoring factory HVAC function with a straightforward replacement and prefer parts that match original fit for long-term dependable performance.
Less Ideal for: Drivers looking for a universal or modern multi-vehicle resistor solution or those who need a complete harness-included repair kit.
- Direct-fit replacement designed to match factory mounting and connector layout.
- Restores full stepped fan speed control when an original resistor has failed.
- Simple bolt-on installation suitable for basic DIY repair without dashboard removal.
- Includes manufacturer guarantee for one year with unlimited mileage.
- Does not include a wiring harness, so vehicles with damaged harnesses will need additional parts or wiring work.
- Compatibility limited to specific older Mazda B-series models with Federal emissions, not universal fit.
Verdict A straightforward, factory-style replacement resistor for specific older Mazda B-series trucks that restores blower speed control but requires confirming fitment and may need a separate harness.
2. Dorman 973-011 Blower Motor Resistor
| Brand | Dorman |
|---|---|
| Model | 973-011 |
| Manufacturer Part Number | 973-011 |
This Dorman 973-011 blower motor resistor replaces a failed resistor to restore full fan-speed control in cabin climate systems. Designed as a direct replacement for specific factory-resistor units, it is typically swapped in when the blower only works on high or not at all. Installation is straightforward for a competent DIYer or a technician because the part matches the original mounting and electrical connector patterns for the listed applications. Dorman highlights testing and U.S.-based inspection, which suggests consistent fit and function for vehicles it targets. Practical benefits include a quick repair that brings back heating and cooling control without replacing the entire blower motor assembly. Some buyers report slight fitment tweaks were needed on older vehicles, and as with many aftermarket electrical parts a small number of early failures appear in reviews, so careful verification of fit and connector type is advised before installation. For a convenience-minded buyer this part can get a Mazda CX-5 back to normal airflow quickly when it is the correct application.
Best for: Convenience-driven buyers who want a quick, do-it-yourself fix to restore proper HVAC fan speeds in their Mazda CX-5 without replacing larger components.
Less Ideal for: Buyers seeking a lifetime or heavy-duty upgrade over factory performance or those unwilling to confirm exact fitment for their CX-5 should consider alternative options or consult a technician.
- Direct-replacement design intended to match factory fit and electrical connections
- Restores multi-speed blower control without replacing the blower motor
- Widely used solution with many successful DIY installations and straightforward installation
- Examined and validated by the manufacturer to perform like the original unit
- A minority of reviews report premature failures on some units
- May require minor trimming or adjustment to fit older vehicle variants
Verdict A practical, ready-to-fit replacement that gets a Mazda CX-5's blower speeds working again quickly when matched to the correct application.
3. Dorman 973-582 HVAC Blower Motor Resistor Kit
| Connector Type | Quick Connect |
|---|---|
| Contact Material | Silver |
| Mounting Type | Plug In Mount |
| Position | Center |
This Dorman blower motor resistor kit replaces a failed or corroded resistor and includes a harness pigtail so you can restore full multi-speed control of the HVAC blower. Installation is a straightforward under-dashboard repair for experienced DIYers or technicians and typically takes under an hour when access is reasonable. Notable elements include a plug-in mounting style, quick connect terminals, and thicker wiring compared with some stock pieces, which helps ease splicing and reduces immediate re-failure from brittle harnesses. In practical use the kit brings back low and mid fan speeds that stop working when the original resistor overheats. A limitation to keep in mind is that a failing blower motor can overload any new resistor, so the resistor may fail again if the fan motor draws excessive current; some installers replace both parts at once to avoid repeat repairs. Fitment must be checked specifically for Mazda CX-5 model years before purchase to ensure exact compatibility.
Best for: Performance-oriented buyers who prioritize restoring factory-quality HVAC control and want a durable, serviceable replacement that performs like a factory part.
Less Ideal for: Buyers looking for a universal fit solution or those unwilling to inspect or possibly replace the blower motor as part of the repair should consider other options or professional diagnosis.
- Complete kit with resistor and harness pigtail for a single repair
- Plug-in mounting and quick connect terminals simplify installation
- Wiring in the kit is thicker than some originals, easing reliable splices
- Will not prevent repeat failures if the blower motor itself is worn or drawing excess current
- Requires verification of exact fit for specific Mazda CX-5 model years
Verdict A practical, factory-quality replacement resistor kit that reliably restores blower speeds when matched to the correct Mazda CX-5 model, but replace the blower motor too if it is drawing excess current to avoid repeat failures.
4. ACROPIX HVAC Blower Motor Resistor for Mazda MX-5 Miata (2006–2015)
| Fitment | Mazda MX-5 Miata 2006-2015 |
|---|---|
| Pin Number | 4 |
| Manufacturer Part Number | accar230714000168 |
This ACROPIX blower motor resistor is a direct replacement part that restores the multiple fan speed settings in the HVAC system when the original resistor fails. It installs in the blower housing and provides the electrical resistance stages the fan control uses to set low and medium speeds. Buyers report straightforward fitment for the specified Mazda Miata years and durability from its plastic and metal construction that resists corrosion and temperature extremes. Installation can be tight inside the dash on small cars, so expect some disassembly or shop time if you are not experienced. The unit is a non-factory aftermarket part and carries the OE reference NE5161B15 for fit verification, so you should confirm connector pin count and match to the vehicle harness before purchasing. For a low-cost fix that returns full blower function, this resistor is practical, though it is not a factory-branded component and long-term longevity can vary compared with higher-end replacements.
Best for: Budget-conscious DIYers seeking an inexpensive repair that gets a Mazda Miata's blower speeds back to normal with minimal parts changes.
Less Ideal for: Owners prioritizing factory-brand parts or maximum long-term durability should consider higher-end or OEM-equivalent replacements and professional installation.
- Restores multi-speed fan control to HVAC systems on compatible Miata models
- Corrosion-resistant plastic and metal construction suited to temperature changes
- Compact, direct-fit design reported to match vehicle connector and pin layout
- Low-cost option for quick repair without replacing the blower motor
- Aftermarket non-factory part so long-term durability may not match higher-end replacements
- Installation can be awkward in the cramped dash area and may require partial disassembly
Verdict A cheap, practical replacement to restore blower fan speeds on compatible Mazda Miata models, best for budget-focused repairs rather than premium longevity.
5. PUAMRPTS HVAC Blower Motor and Resistor Kit for Mazda CX-5 (2017–2022)
| Vehicle fitment | Mazda CX-5 2017–2022 with Auto Temperature Control |
|---|---|
| Included components | Blower motor with resistor assembly |
| Compatible part numbers | 700332, PM4108, GHR161B10, K12461765 |
| Brand | PUAMRPTS |
| Part Number | SEN1023 |
This blower motor and resistor kit replaces the failed fan assembly and resistor pack in Mazda CX-5 models with automatic temperature control. It is supplied as a matched kit so you can swap the motor and resistor at the same time, which simplifies HVAC repairs and reduces repeat trips into the heater box. Installation is typical for dash blower jobs: remove the old assembly, plug the harness into the new motor and secure the resistor, then test fan speeds. The listing highlights direct-fit compatibility with the 2017–2022 CX-5 and references several OEM part numbers, so it should drop in without major modification. Practical benefits include replacing two wear items at once and reported quiet operation and good airflow in user feedback. Limitations are that longevity versus a factory part depends on installation and conditions, and this is focused on vehicles with the auto temperature control system only, so fitment must be verified before purchase.
Best for: Risk-averse mainstream buyers who want a straightforward, one-stop replacement to restore HVAC fan function without hunting separate parts; ideal for owners who prioritize a simple, low-risk repair.
Less Ideal for: Buyers who need a blower solution for other Mazda models or non-auto temperature control variants should look for parts specific to their setup; performance-focused modifiers seeking upgraded airflow or noise reduction may prefer aftermarket performance options.
- Matched kit includes both blower motor and resistor to reduce future repeat work
- Direct-fit compatibility listed specifically for Mazda CX-5 2017–2022 with auto temperature control
- Users report quieter operation and satisfactory airflow after installation
- Comes as a single packaged assembly to simplify replacement
- Durability compared with factory-quality parts may vary with driving conditions and installation quality
- Fitment is limited to CX-5 models with the stated auto temperature control configuration
Verdict A practical matched motor-and-resistor kit for Mazda CX-5 owners seeking a simple, risk-averse repair to restore HVAC fan speeds.
6. GM Genuine Parts Blower Motor Resistor (15-80879)
| Manufacturer | ACDelco |
|---|---|
| Brand | GM GENUINE PARTS |
| Model | Blower Motor Resistor |
| Manufacturer Part Number | 15-80879 |
| OEM Part Number | 15818910 |
This GM Genuine Parts blower motor resistor is a direct factory-quality replacement that restores stepped voltage control to the heater and air conditioning blower, allowing the fan to run at multiple speeds. In practice it is installed in the HVAC housing or blower motor assembly and replaces a failed resistor when you experience loss of low or medium fan speeds or only high speed functioning. The part is offered by a major OEM brand and is built to GM specifications, so fit, connector layout, and electrical behavior match factory expectations. Buyers can expect straightforward installation when access is reasonable and the resistor typically resolves common speed-loss issues without requiring additional components. Limitations include vehicle-specific fitment requirements and the need to confirm compatibility with the Mazda CX-5’s HVAC connector and mounting location before purchase, since this resistor was produced for GM platforms and may not directly fit all CX-5 model years without adapter or alternative part numbers.
Best for: A practical optimizer focused on fixing HVAC function reliably without overspending; ideal for owners who prefer factory-quality replacement parts and are comfortable verifying compatibility before buying.
Less Ideal for: Not a good choice for buyers seeking a guaranteed, plug-and-play resistor for a specific Mazda CX-5 model year without checking fitment or for those who prefer aftermarket parts labeled specifically for Mazda fitment.
- Factory-quality design matching original equipment electrical behavior
- Restores multiple blower fan speeds by providing stepped voltage drops
- Compact, simple replacement that often fixes common fan-speed failures quickly
- Part was produced for GM vehicles so direct fit for Mazda CX-5 must be verified before ordering
- No fitment or model-year guidance printed on the part listing, requiring extra compatibility checks
Verdict A reliable, factory-quality blower motor resistor that can restore blower speeds at good value if you confirm it fits your Mazda CX-5.
7. Marsflex Blower Motor Resistor (APAC05074)
| Speed | 3250 RPM |
|---|---|
| Voltage | 12 Volts |
| Horsepower | 228 Watts |
This Marsflex blower motor resistor is a direct replacement module that restores stepped fan speeds by regulating current to the HVAC blower motor. It is installed in-line with the blower motor wiring and is typically used when a vehicle loses low or medium fan settings or the blower stops working entirely. The part is advertised as meeting factory design and performance and includes multiple mounting holes and pin configurations to match common GM fitments. Practical benefits include straightforward installation for experienced DIYers, compatibility across many older GM trucks and SUVs, and a metal-bodied module that should resist heat under normal use. Limitations are the need to verify pin count and mounting pattern before ordering since several resistor variants exist for similar models, and occasional fitment inconsistencies reported for certain model years that may require checking the vehicle connector or wiring. Expect a functional, cost-effective repair when the correct variant is chosen, but plan for basic electrical troubleshooting if the blower still does not operate after installation.
Best for: A balanced all-round buyer who wants an affordable, factory-style replacement to repair a failed blower speed control and is comfortable verifying fitment before installation.
Less Ideal for: Owners looking specifically for parts guaranteed to fit a Mazda CX-5 or buyers who prefer vehicle-specific OEM replacements should look elsewhere.
- Designed to match factory-style resistor function for restoring fan speed control
- Metal construction that improves durability and heat resistance
- Fits many GM truck and SUV model years commonly needing replacement
- Simple, plug-and-play installation when the vehicle uses the same pin and mounting pattern
- Multiple similar resistor variants exist so incorrect fitment is possible if pin count or mounting holes are not checked
- Not a vehicle-specific Mazda CX-5 part and therefore not compatible with that model
Verdict A budget-friendly, factory-style blower resistor that works well for compatible GM models but requires careful fitment checks and is not for Mazda CX-5 vehicles.
Choosing the Right Mazda CX-5 Blower Motor Resistor: Key Factors to Consider
Fit and Connector Compatibility
Correct physical fit and matching electrical connectors are essential because resistors must integrate directly into the vehicle’s HVAC housing and wiring. A precise match eliminates the need for cutting, splicing, or aftermarket adapters that can introduce failure points.
If a resistor does not sit correctly in the blower assembly it can be exposed to airflow patterns or contact that shortens its life. Ensuring correct connector pinout preserves proper speed control and reduces installation time and error.
Thermal Management and Materials
Blower motor resistors dissipate heat when limiting current to the fan motor, so materials and heat-sinking matter for durability. Components that use ceramic substrates, robust wire-wound elements, or aluminum heat sinks will usually tolerate extended cycles and high-load conditions better.
Poor thermal design leads to premature burnout, especially in high-humidity or stop-and-go driving where the resistor repeatedly cycles. Look for parts designed to handle the thermal loads typical of HVAC operation.
Electrical Ratings and Reliability
Rated amperage and voltage consistency determine whether the resistor will maintain stable fan speeds and avoid overloading. Parts should specify maximum current capacity and expected resistance values under load so you can confirm suitability for the CX-5 blower motor.
Reliable electrical construction, including quality solder joints and secure terminals, reduces intermittent failures and ensures predictable HVAC behavior across all fan settings.
Corrosion Resistance and Environmental Protection
The blower motor resistor sits in the HVAC airflow path and can be exposed to moisture, dust, and cabin contaminants. Corrosion-resistant terminals, sealed housings, or protective coatings extend service life by preventing oxidation and electrical degradation.
Consider how the part handles condensation and road-sourced debris because vulnerability here often shows up as reduced contact quality or open circuits over time.
Serviceability and Installation Ease
Ease of installation affects overall ownership experience. Parts that offer plug-and-play connectors, clear mounting points, and included gaskets or seals reduce labor time and the chance of installation errors. Some replacements provide modular designs that allow swapping the resistor element without removing the entire blower motor assembly.
Better serviceability also helps diagnostics and future maintenance, making it easier to test or replace the module if symptoms recur.
Manufacturer Quality and Documentation
Clear technical documentation, consistent part markings, and known manufacturing standards help you verify compatibility and expected performance. A documented part makes it easier to confirm electrical specs and fit before installation.
Quality control indicators, such as visible markings and consistent construction, reduce the risk of receiving a poorly made unit that could fail early or cause inconsistent HVAC operation.
FAQ
What are common symptoms of a failing blower motor resistor in a Mazda CX-5?
Common signs include the fan working only on one speed, losing some speed settings, or the fan failing entirely. You might also notice unusual noises or inconsistent airflow levels that vary with temperature.
Where is the blower motor resistor located on the Mazda CX-5?
On the Mazda CX-5 the resistor is typically mounted near the blower motor within the HVAC housing, often under the glove box or inside the passenger footwell area. Location can vary by model year, so confirm access points before starting work.
How can I test a blower motor resistor to confirm it is bad?
A common approach is to perform a visual inspection for burned or corroded terminals and then measure resistance across the terminals with a multimeter. You can also test fan operation while checking for expected voltage drops at different speed settings. If readings are outside the specified range, the resistor likely needs replacement.
Will replacing the blower motor resistor restore all fan speed functions?
Often replacing a faulty resistor restores multiple fan speeds, especially when symptoms are limited to speed loss or intermittent operation. However, if the blower motor itself or control switch is worn, the issue may persist and require additional diagnosis.
What should I consider about installation when replacing the resistor?
Plan for modest disassembly of the HVAC access panel or glove box area to reach the resistor. Verify connector fitment and replace any damaged seals or gaskets to maintain environmental protection. Use proper torque and avoid bent terminals to preserve a reliable electrical connection.
How We Chose the Best Mazda CX-5 Blower Motor Resistor
To assemble this list we focused on attributes that directly affect function and longevity in the Mazda CX-5 HVAC system. Key evaluation criteria included physical fit and connector compatibility to ensure straightforward installation, thermal resistance materials and heat-sinking to reduce failure under prolonged use, rated amperage and voltage consistency to maintain accurate fan speeds, and corrosion-resistant terminals to withstand cabin moisture. We also considered manufacturing quality, such as soldering and bonding, plus availability of replacement modules or plug-and-play harnesses for easier service.We excluded any items that lacked clear fitment information for the Mazda CX-5, components with unknown or unverified electrical ratings, and units that used generic or unprotected terminals likely to corrode. The resulting shortlist prioritizes parts with explicit CX-5 compatibility, robust heat management, and reliable electrical performance for everyday driving and climate control use.
Our full evaluation process is outlined in our review methodology.
Conclusion
When choosing a replacement for the Mazda CX-5 blower motor resistor prioritize correct fitment, electrical ratings that match the factory blower motor, and robust thermal design. These factors most directly influence whether the repair restores consistent fan speed and long service life.Balance ease of installation and corrosion resistance with verified specifications to reduce the chance of repeat failures. If you confirm location and test the old module beforehand, you can make a targeted replacement that addresses the specific symptom without unnecessary work.
