When a RAV4's fan loses speeds or becomes noisy, the blower motor resistor is often the culprit. Choosing the right Toyota RAV4 blower motor resistor matters because fit, heat tolerance, and electrical reliability determine whether your HVAC system will deliver steady airflow and long service life.This guide highlights seven shortlisted blower motor resistors selected for fitment and durability. We evaluated each pick for installation compatibility, thermal performance, and expected lifespan to help you narrow options quickly.
Looking for other parts? See all Toyota RAV4 parts & accessories.
Top Picks at a Glance
| Best Overall The best all-around choice for most situations | Toyota 87138-02110 Blower Motor Resistor | ![]() |
| Best quality Built to a higher standard if you want something more solid | STETIG Manual Blower Motor Resistor (replacement for select Toyota RAV4) | ![]() |
| Best Value The sweet spot between price and what you get | A-Premium Blower Motor Resistor Compatible with Toyota RAV4 (2001–2005) | ![]() |
| Best budget The cheapest option that still gets the job done reliably | ACROPIX Blower Motor Resistor for Toyota RAV4 2001–2005 (87138-42030) | ![]() |
| Highest Rated A top-rated pick with lots of positive feedback | YCUPONE HVAC Blower Motor Resistor 8713826160 (fits select Toyota/Scion models) | ![]() |
| Most popular A crowd favorite that many people choose with confidence | Dorman 973-574 HVAC Blower Motor Resistor Kit | ![]() |
| Best Seller A high-volume bestseller chosen again and again | Ruizure HVAC Blower Motor Resistor Module | ![]() |
1. Toyota 87138-02110 Blower Motor Resistor
| Brand Name | Toyota |
|---|---|
| Model | 87138-02110 |
| Part Number | 87138-02110 |
| Included Components | B/Motor Resistor |
This Toyota 87138-02110 blower motor resistor is a direct factory-quality replacement component that regulates the HVAC blower motor speeds. It installs in the blower housing and is used when a vehicle exhibits loss of certain fan speeds or intermittent blower operation. The part is sold as a single resistor unit and carries Toyota part identification for straightforward fitment on compatible models. Because it is a manufacturer part, the resistor matches factory electrical characteristics and connector layout which simplifies installation and reduces troubleshooting. Practical benefits include reliable fan speed control and expected compatibility with Toyota wiring and housings. Limitations are minimal for owners seeking a like-for-like replacement but anyone needing an upgraded or heavy-duty aftermarket solution for extreme climates or modified HVAC systems should look elsewhere.
Best for: A balanced buyer who wants a reliable, factory-quality replacement to restore original HVAC fan function without fuss or excess modifications.
Less Ideal for: Drivers seeking performance or heavy-duty aftermarket resistors for off‑grid, high-load, or modified HVAC setups should consider specialized alternatives.
- Factory brand part matching Toyota fit and connector layout
- Sold as a single direct replacement for straightforward installation
- Restores proper blower fan speed control when original resistor fails
- Not an upgraded or heavy-duty unit for modified HVAC systems
Verdict: A factory-matching Toyota blower motor resistor for dependable, straightforward restoration of HVAC fan speeds.
2. STETIG Manual Blower Motor Resistor (replacement for select Toyota RAV4)
| Manufacturer | STETIG |
|---|---|
| Item model number | 18B647-1524-AB |
| Manufacturer Part Number | 18B647-1524-AB |
| OEM Part Number | 4P1655, 973580, RU718, 20460, RU323, RU745, 973-580, RU-718, 4P1694, 8713802100, 8713802110, 8713826160, JA1777, JA1816 |
This STETIG blower motor resistor is a direct-fit replacement intended to restore proper fan speed control on Toyota RAV4 vehicles that use the listed OEM cross-reference numbers. It installs in-line with the vehicle blower motor and is typically swapped when the fan only runs on high or certain speed settings fail. The part is engineered to meet factory fit, form, and function expectations and uses crossreference numbers to match factory units. In practice the resistor provides a straightforward DIY repair: access the resistor housing, unplug the connector, and replace the module in a matter of minutes on most RAV4 model years that use this design. Customers report reliable operation and easy installation when paired with a working blower motor. Limitations include dependence on correct fitment for your exact RAV4 year and submodel and the usual risk that a failing blower motor or connector corrosion can mimic resistor failure, so diagnosing both is recommended before replacement.
Best for: Performance-oriented buyers who prioritize restoring precise HVAC fan control on their Toyota RAV4 and prefer a high-quality, factory-replacement style component.
Less Ideal for: Drivers looking for an upgraded or enhanced HVAC performance part beyond factory specifications or those who have electrical issues that are not isolated to the resistor.
- Designed to meet factory fit and function for compatible vehicles
- Cross-reference list includes multiple OEM part numbers for easier matching
- Simple, quick installation that most DIYers can complete without specialty tools
- Consistent user reports of restored fan speed control after replacement
- Fitment depends strictly on matching the correct OEM part number for your RAV4
- Does not address failure causes outside the resistor such as a bad blower motor or corroded connector
Verdict: A factory-replacement style resistor that reliably restores RAV4 blower speed control when the correct OEM cross-reference is selected.
3. A-Premium Blower Motor Resistor Compatible with Toyota RAV4 (2001–2005)
| Compatible Models | Toyota RAV4 2001-2005 |
|---|---|
| Connector | 4 Pins |
| Manufacturer Part Number | APBMR042 |
| Reference Numbers | 87138-42030, RU325, 984-061 |
This A-Premium blower motor resistor replaces the factory resistor for Toyota RAV4 model years 2001 through 2005 to restore blower fan speeds. It installs in-line with the vehicle heater/AC blower and is offered as a direct-fit replacement that matches the listed reference numbers for a straightforward swap without modification. Typical use is a DIY or shop repair when the fan only works on one speed or not at all. The product lists OE-equivalent fitment and comes packaged as a single unit, so you only need the part and basic tools to complete the job. Practical benefits include getting the climate system functioning again quickly and avoiding a full blower motor replacement when only the resistor has failed. Limitations to consider are mixed user feedback on durability and one reported failure, so while it is a budget-friendly option it may not match the longevity of higher-end branded parts.
Best for: Practical optimizers who want an inexpensive, ready-to-install replacement to fix blower fan speed issues and get the climate system working again without overspending.
Less Ideal for: Buyers seeking the absolute longest-lasting OEM-brand component or a multi-part warranty-supported solution should consider higher-tier factory-quality replacements.
- Direct-fit replacement for Toyota RAV4 2001–2005 referencing factory part numbers
- Sold as a single ready-to-install unit for quick DIY or shop replacement
- Manufactured to match OEM specifications for plug-and-play installation
- Compact packaging makes it easy to store and ship
- Some user reports indicate occasional premature failure
- Limited long-term reliability data compared with OEM-brand parts
Verdict: A budget-friendly, direct-fit resistor that restores blower speeds on 2001–2005 RAV4s but may not match OEM longevity.

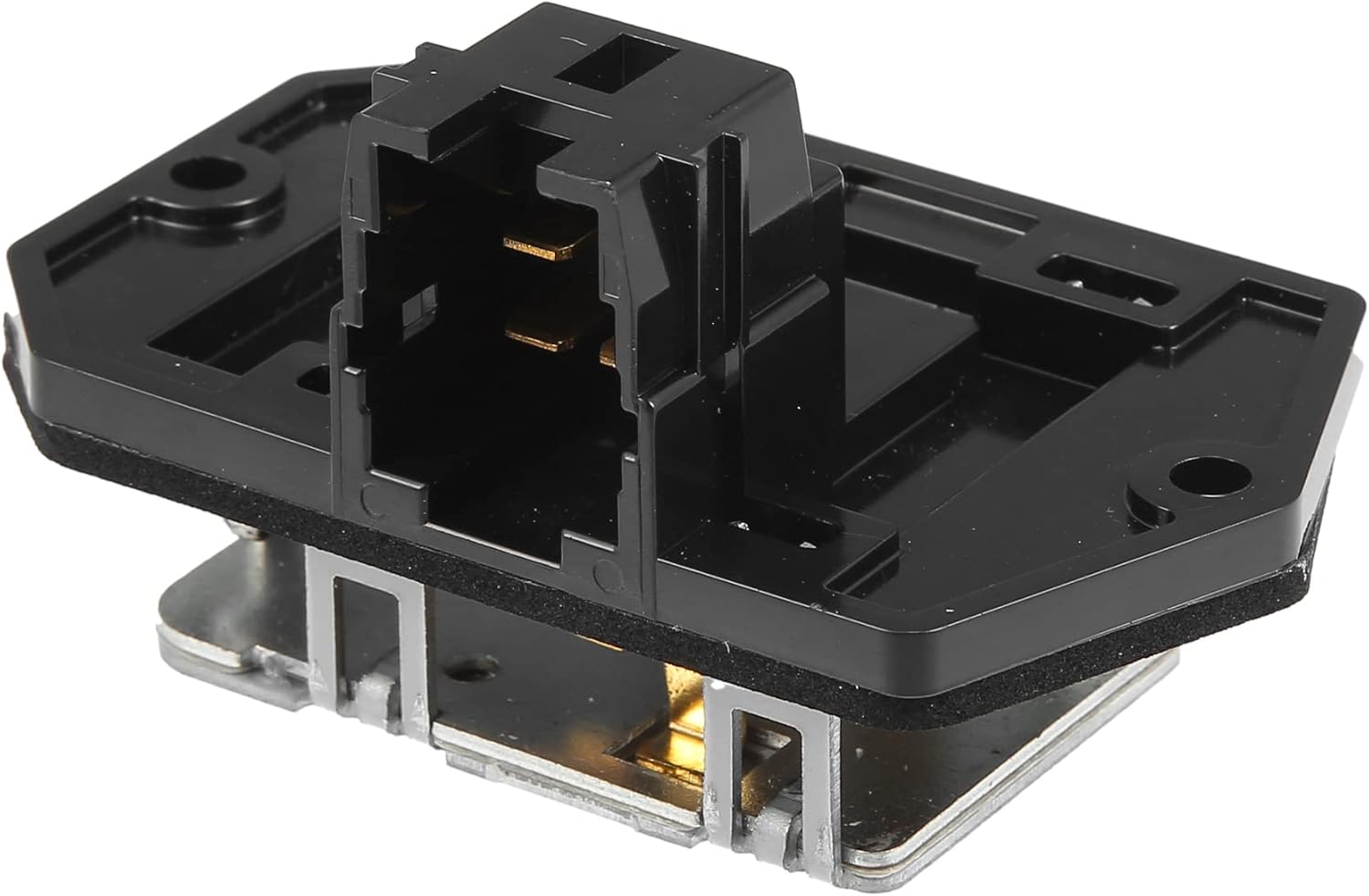

4. ACROPIX Blower Motor Resistor for Toyota RAV4 2001–2005 (87138-42030)
| Fitment | Toyota RAV4 2001-2005 |
|---|---|
| Reference number | 87138-42030 |
| Package quantity | 1 piece |
This ACROPIX blower motor resistor is a single-piece replacement intended to restore fan speed control for Toyota RAV4 model years 2001 through 2005. It installs in the HVAC housing and replaces a failed resistor when the blower only works on certain speeds or stops blowing entirely. The listing states the part matches the factory reference number 87138-42030 and ships as one unit, making it a straightforward swap for anyone comfortable with basic vehicle electrical access or a simple shop visit. Practical benefits include cost savings compared with dealer parts and a compact, OEM-style footprint that fits the factory location. Limitations are typical for budget aftermarket parts: long-term durability may vary compared with higher-end replacements and installation guidance in the listing is minimal, so inexperienced installers should consult a service manual or professional. For restoring normal blower operation in an older RAV4 at low cost, this resistor covers the essential need without extras.
Best for: Budget-conscious DIYers or owners focused on economical repairs who want a simple, low-cost part to restore HVAC fan control on a Toyota RAV4 2001–2005.
Less Ideal for: Owners seeking a long-term premium replacement or extended durability should consider higher-end aftermarket or factory-quality parts.
- Made to match factory reference number 87138-42030 for direct replacement fit in specified RAV4 years
- Low-cost option that restores full fan speed control when the original resistor fails
- Compact single-piece unit simplifies replacement and reduces installation time
- Ships as a single part so you only install what is needed to fix blower speed issues
- Long-term durability may not match higher-end or dealer parts
- Product listing offers limited installation instructions, so professional installation may be needed for some owners
Verdict: A cost-effective, direct-fit resistor to get an older RAV4's blower working again, best for budget repairs rather than a lifetime solution.
5. YCUPONE HVAC Blower Motor Resistor 8713826160 (fits select Toyota/Scion models)
| Brand | YCUPONE |
|---|---|
| Item model number | 8713826160 |
| Manufacturer | YCUPONE |
| Date First Available | May 21, 2024 |
This YCUPONE blower motor resistor is a direct-replacement style unit intended to restore blower fan speed control when a factory resistor has failed. It installs in the vehicle HVAC housing to control the low and medium blower speeds, and is supplied as a single replacement piece with the listed part number 8713826160. Typical use is a quick swap when a tC’s fan is stuck on high or certain speeds do not work; the compact module and standard connector make it straightforward for DIYers with basic hand tools. The practical benefit is getting a working climate control fan without replacing the entire blower motor assembly. Limitations are that fitment is specific to the supported model years and Toyota/Scion platforms listed, and as an aftermarket part it may differ slightly in fit or materials compared with factory parts, so careful comparison before installation is advisable.
Best for: Practical optimizers seeking a low-cost, no-frills repair to restore HVAC fan speed control on a Scion tC rather than replacing larger assemblies.
Less Ideal for: Buyers who prefer factory-original parts, long-term dealer replacements, or who need a multi-vehicle solution should consider alternatives.
- Direct-replacement design for affected Toyota/Scion HVAC systems
- Simple single-piece swap suitable for DIY installation
- Restores lost fan speed settings without replacing the blower motor
- Aftermarket construction may vary from factory parts in fit or longevity
Verdict: A budget-friendly direct-replacement resistor that gets a Scion tC blower fan working again without replacing the whole motor.
6. Dorman 973-574 HVAC Blower Motor Resistor Kit
| Model Name | 973-574 |
|---|---|
| Manufacturer | Dorman Products |
| Manufacturer Part Number | 973-574 |
| OEM Part Number | 20460; 4P1694; JA1816; RU1434; RU745; 87138-02110 |
This Dorman blower motor resistor kit replaces a failed or corroded factory resistor and includes the harness pigtail needed for most repairs. It is designed as a direct replacement to restore full HVAC fan speed control on compatible vehicles, and the kit's machined exterior and preassembled connector make installation straightforward for a basic DIY or a quick shop job. The practical benefit is you can regain all fan speeds without replacing the entire blower motor, saving time and cost. Because it includes the harness, the typical repair avoids splicing or hunting for a separate connector. Limitations are fitment: the listing targets select Toyota Corolla, Matrix, and RAV4 years, so confirm vehicle compatibility before buying; if your Scion tC uses a different resistor footprint or connector, this kit will not fit. The part is a simple electrical replacement and will not address blower motor mechanical failures or unrelated HVAC control module faults.
Best for: Convenience-driven buyers who want a quick, do-it-yourself fix that restores HVAC fan speeds without aftermarket modification or lengthy troubleshooting.
Less Ideal for: Buyers whose issue is a failing blower motor, HVAC control module, or a vehicle with a different resistor connector should seek a motor replacement or a model-specific resistor kit.
- Includes both resistor and harness pigtail for a complete replacement
- Designed as a direct replacement to restore full blower speed control
- Machined exterior and preassembled connector simplify installation
- Fitment is limited to specific Toyota model years so may not match other vehicles
- Does not repair faulty blower motor bearings or mechanical failures
Verdict: A ready-to-install resistor and harness kit that restores blower fan speed control without replacing the entire blower motor.
7. Ruizure HVAC Blower Motor Resistor Module
| Brand Name | Ruizure |
|---|---|
| Included Components | HVAC Heater Blower Motor Resistor |
| Part Number | SS00044 |
This Ruizure blower motor resistor module replaces the resistor that controls the blower fan speeds when the original unit fails. It is typically used to restore variable cabin fan speeds that otherwise would be stuck on one speed or not work at all. The part is sold as a single HVAC heater blower motor resistor and lists interchange numbers for Toyota and Scion applications including RAV4 and Corolla model ranges. Practical benefits include an apparent direct fit for many model years, straightforward electrical connector alignment, and materials the brand describes as durable for continued use. Installation is usually simple once the blower motor access panel is removed, making it suitable for do-it-yourself repairs or quick shop replacement. Limitations to note are model-year differences where later vehicles may have the resistor integrated into the blower motor assembly so this separate module will not fit those cars, and fitment must be confirmed against the vehicle's existing part number before purchase.
Best for: Risk-averse mainstream buyers seeking a reliable, low-risk repair solution to restore HVAC fan control on covered Toyota RAV4 model years and similar Toyotas.
Less Ideal for: Drivers with later-model vehicles that use an integrated blower motor assembly or those who prefer a full blower motor replacement instead of a separate resistor module.
- Designed to restore multi-speed blower control when the factory resistor fails
- Direct-fit wiring and connector layout for listed Toyota and Scion models
- Listed interchange part numbers make cross-referencing with factory parts straightforward
- Easy installation that is suitable for DIY replacement after blower access
- Does not fit models where the resistor is integrated into the blower motor assembly
- Compatibility varies across model years so confirming fitment is required
Verdict: A straightforward, direct-fit blower motor resistor module for restoring fan speed control on supported Toyota and Scion models.
Choosing the Right Toyota RAV4 Blower Motor Resistor: Key Factors to Consider
Fitment and Connector Match
Accurate fitment is essential because the resistor must plug into the RAV4's factory harness and mount in the original location. A mismatched connector can lead to poor electrical contact, intermittent fan speeds, or additional wiring work.
Check that mounting tabs align with the blower housing to avoid vibration and ensure airflow over the resistor's fins. Proper mechanical alignment reduces the chance of premature failure caused by loose connections or physical stress during driving.
Thermal Dissipation Design
Blower motor resistors dissipate heat as they regulate fan speed, so the resistor's ability to shed heat affects longevity and safety. Look for designs with adequate fins, ventilation, or ceramic components that tolerate repeated thermal cycling without degrading.
Poor heat management can cause resistor elements to overheat, warp, or break connection, leading to loss of one or more fan speeds. Good dissipation also helps maintain consistent resistance values under load, which preserves predictable HVAC performance.
Electrical Reliability and Materials
The materials used for terminals, wiring, and resistor elements influence corrosion resistance and electrical stability. Tin- or nickel-plated terminals and high-temperature wiring reduce the risk of increased resistance at connections over time.
Stable resistance values prevent erratic fan behavior. Inspect product descriptions or specifications for high-temperature components and sealed terminals that resist moisture and contaminants commonly found in under-dash environments.
Service Life and Warranty Support
Expected lifespan depends on build quality and how the resistor handles heat and vibration. Parts designed with durable resistor elements and robust housings typically last longer, reducing the need for repeat replacements.
Warranty terms and manufacturer support also signal confidence in durability. A reasonable warranty can provide recourse if a unit fails prematurely, and clear warranty procedures reduce hassle during a replacement.
Ease Of Installation
Many RAV4 blower motor resistor replacements are straightforward, but installation ease varies by access and connector design. A part that aligns with factory mounting points and requires no wiring modification saves time and reduces installation errors.
Consider whether the unit requires partial dash removal or if it is accessible from under the glove box, and whether the connector locks securely. Clear installation notes or vehicle-specific fit info can make DIY replacement more feasible.
Compatibility With HVAC Systems
Resistor behavior should suit the RAV4's blower motor loading and the HVAC control strategy. Some resistors are optimized for low-speed regulation while others handle a broader range of currents without overheating.
Ensure the resistor supports the expected current draw of the blower motor and that its resistance steps produce the desired fan speed spread. Compatibility prevents reduced airflow or excessive strain on the blower motor.
How We Chose the Best Toyota RAV4 Blower Motor Resistor
We prioritized parts that match the Toyota RAV4's factory electrical and mechanical interfaces to ensure correct fit and straightforward installation. Key evaluation criteria included connector and mounting compatibility, thermal dissipation design, and resistance network stability under repeated load. We also examined material quality of terminals and housing, expected service life based on heat-resistant components, and the completeness of fitment information provided by manufacturers.We excluded any units lacking clear vehicle-fit data or with unverified claims about heat tolerance. We also filtered out products that required substantial wiring modification or nonstandard adapters. The remaining selections are those that balance correct fit with robust thermal design and reliable electrical performance for typical RAV4 HVAC use.
Our full evaluation process is outlined in our review methodology.
FAQ
What are common symptoms of a failing blower motor resistor in a RAV4?
Common signs include loss of one or more fan speeds, the blower working only on its highest setting, or intermittent fan operation. You may also notice unusual fan noise or inconsistent airflow that changes with vehicle vibration.
How can I test the HVAC blower resistor to confirm it is bad?
A simple diagnostic approach is to observe fan behavior across settings and check for voltage at the resistor connector with the fan switch changed. Continuity or resistance checks with a multimeter at the resistor's terminals can reveal open circuits. If you are not confident with electrical tests, seek professional diagnostics.
Where is the blower motor resistor located on a Toyota RAV4?
On most RAV4 model years, the resistor is mounted near the blower motor assembly, usually under the dash or behind the glove compartment. Access depends on vehicle trim and model year, so expect to remove trim panels or the glove box for service access.
Is replacing the blower motor resistor difficult?
Replacement difficulty varies but is often moderate for those with basic tools and mechanical confidence. Tasks typically involve disconnecting the battery, removing access panels, unplugging the connector, and unbolting the resistor. If access requires dashboard disassembly, difficulty and time increase.
What causes a blower motor resistor to fail prematurely?
Frequent thermal cycling, high electrical load from a failing blower motor, moisture intrusion, and corrosion at terminals all contribute to premature failure. Poor ventilation around the resistor that traps heat can also accelerate degradation.
Conclusion
Prioritize a resistor that matches the Toyota RAV4's connector and mounting geometry while offering robust thermal management and corrosion-resistant terminals. Balance ease of installation and durability to reduce the chance of repeat service.Keep in mind tradeoffs between compact designs and heat dissipation capacity. If your blower shows multiple failure signs or excessive current draw, address the underlying blower motor condition alongside resistor replacement to achieve a lasting fix.
