If you own a 2010-2018 Ram 3500, adding a dedicated backup camera can make reversing, parking, and hitching trailers much safer and less stressful. Not all cameras fit the Ram 3500 equally well, and decisions about mounting style, wiring, and image clarity affect how useful the system is in everyday driving.This guide shortlists the top options for the Ram 3500 across different installation preferences and display setups. We evaluated candidates for image quality, low-light performance, mounting compatibility, and installation complexity so you can pick a system that matches how you use your truck. Read on for the key differences and practical installation notes before the product list.
Looking for other parts? See all Ram 3500 parts & accessories.
Top Picks at a Glance
| Best Overall Backup Camera A well-rounded camera balancing image quality, features, and reliability | Master Tailgaters Tailgate Handle with Built-In Backup Camera for Dodge Ram (2009–2018) |  |
| Best Budget Backup Camera A low-cost option that still provides basic backup visibility | GZGN Rear View Backup Camera Compatible with Ram 1500/2500/3500 (2010–2012) |  |
| Best Premium Backup Camera Higher-end camera with superior image, build, and feature set | Mopar Rear View Backup Camera (56038978AL) |  |
| Best Wired Backup Camera Hardwired camera system for the most reliable, low-latency connection | ACAUTO Rear View Backup Camera (Fits Ram 1500/2500/3500 2013–2018) |  |
| Best Night-Vision Backup Camera Optimized for low-light performance with clear nighttime imaging | EWAY Tailgate Handle Backup Camera for Dodge Ram 2009–2017 |  |
| Best Wide-Angle Backup Camera A camera with an extra-wide field of view for broader rear coverage | Bzgnl AHD 720P Tailgate Handle Backup Camera for 2009–2017 Dodge Ram 1500/2500/3500 |  |
1. Master Tailgaters Tailgate Handle with Built-In Backup Camera for Dodge Ram (2009–2018)
Best Overall Backup Camera
| Voltage | 12 Volts |
|---|---|
| Optical Sensor Technology | CMOS |
| Field Of View | 170 Degrees |
| Video Capture Resolution | 480p |
| Connector Type | RCA |
This tailgate-handle camera replaces the factory handle on compatible Dodge Ram trucks and combines a rugged handle with a built-in 170 degree backup camera aimed slightly downward to show the trailer ball and low rear obstacles. The camera uses a 1/4" CMOS sensor and Nidec lens, offers 600 TV lines (about 480p video capture) and a low-light rating of 0.1 lux to help in dim conditions. It is IP68 rated for water resistance and connects via a standard RCA plug so it will work with most aftermarket monitors and mirror displays. Installation is surface-mount and designed to be a direct replacement for the handle, keeping wiring neat and hidden. Practical benefits include improved rear visibility for towing, a durable waterproof design for all-weather use, and compatibility with common aftermarket screens. Limitations are its analog RCA output and modest resolution compared with modern digital cameras, so image detail is adequate for parking and hitching but not as sharp as higher-resolution digital systems.
Best for: Buyers who want a tidy, factory-style backup camera integrated into a replacement tailgate handle to improve towing and low-speed reversing visibility on 2010–2018 Ram 3500 trucks.
Less Ideal for: Drivers who need the highest-resolution digital image or a wireless factory-style camera system should consider newer digital cameras or integrated OEM-upgrade options instead.
- Integrated tailgate-handle design hides camera and replaces factory handle for a clean, factory-style fit
- IP68 waterproof rating for reliable operation in wet or dirty conditions
- 170 degree wide-angle lens provides full view of hitch and rear area for towing and parking
- Standard RCA connector works with most aftermarket monitors and mirror displays
- Low-light sensitivity (0.1 lux) and 600 TV lines give usable nighttime visibility for reversing
- Analog RCA output and 480p-class capture limit image sharpness compared with modern digital cameras
- Surface-mount installation still requires routing power and video cable which can be time consuming
Verdict: The best overall backup camera for most buyers, offering a balanced mix of clear daytime and nighttime image quality, dependable operation, and straightforward installation.
2. GZGN Rear View Backup Camera Compatible with Ram 1500/2500/3500 (2010–2012)
Best Budget Backup Camera
| Video Capture Resolution | 1080p |
|---|---|
| Field Of View | 170 Degrees |
| Optical Sensor Technology | CCD CMOS |
| Installation Type | Flush Mount |
| Connector Type | Proprietary (Vehicle-specific) |
This GZGN rear view camera is a straightforward replacement camera designed to fit Ram 1500, 2500, and 3500 models from 2010 to 2012. It mounts flush and uses a vehicle-specific connector for a mostly plug-and-play install, so it is typically used to restore or upgrade rear visibility without modifying factory wiring. The camera uses a CCD/CMOS sensor and delivers 1080p capture with a 170 degree wide-angle field of view, which helps reveal pedestrians and obstacles in typical reversing situations. Construction appears aimed at durability for exterior use and the unit ships as a single camera assembly. Expect a simple, practical setup with no extra features like parking guidelines or wireless connectivity. Limitations are predictable for the price point: it is vehicle-specific so fitment must be confirmed, and buyers who want advanced night processing, adjustable guidelines, or an integrated parking sensor will need a higher-end option.
Best for: Buyers who need an inexpensive, direct-replacement camera to restore or improve rear visibility on a Ram 2010–2012 truck and prioritize a simple, factory-style installation over extra features.
Less Ideal for: Shoppers seeking wireless or multi-function systems, aftermarket cameras with adjustable guides, or users who want a single camera to fit many different vehicle makes and years.
- Vehicle-specific connector for near plug-and-play installation on compatible Ram trucks
- 1080p video capture with a 170 degree wide-angle field of view for broad rear coverage
- Flush-mount design fits cleanly in factory locations
- Uses CCD/CMOS sensor intended for reliable daytime and low-light imaging
- Compatibility limited to specified Ram model years and engine configurations requiring fitment confirmation
- No advanced features such as wireless output, adjustable guidelines, or built-in parking sensors
Verdict: The best budget backup camera for shoppers who need reliable rear visibility on a tight budget without extra bells and whistles.
3. Mopar Rear View Backup Camera (56038978AL)
Best Premium Backup Camera
| Voltage | 12 Volts |
|---|---|
| Optical Sensor Technology | CCD, CMOS |
| Field Of View | 120 Degrees |
| Video Capture Resolution | 1080p |
| Connector Type | RCA |
This Mopar rear view backup camera is a factory-quality replacement intended for direct fitment on specified 2013–2015 Ram models and compatible Chrysler vehicles. It mounts on the vehicle surface and connects via an RCA lead to a compatible monitor, providing a wide-angle lens with a 120 degree field of view and support for both CCD and CMOS sensor technologies. The camera records in MP4 at 1080p resolution, which helps deliver clear footage for reversing and parking in daylight and well-lit conditions. As an OEM part, it preserves factory fit and finish and simplifies installation compared with universal aftermarket units. Limitations include the RCA connector instead of modern digital interfaces and potential variability in low-light performance depending on the vehicle display and wiring; advanced features like multiple viewing overlays depend on the vehicle monitor rather than the camera itself. For buyers focused on a robust, factory-spec replacement for supported Ram 3500 models, this camera keeps things simple and reliable.
Best for: Buyers who want a factory replacement that preserves fit, finish, and straightforward installation for 2013–2015 Ram trucks while prioritizing clear daytime imaging and reliable operation.
Less Ideal for: Drivers seeking the latest digital interfaces, integrated parking guidelines from the camera, or best-in-class low-light imaging should consider higher-end aftermarket cameras with dedicated processors and night-vision features.
- Factory-quality part designed for direct fit on listed Dodge Ram and Chrysler models
- Wide 120 degree field of view for good rear coverage
- Supports 1080p video capture for clearer recorded footage
- Uses common RCA connector for compatibility with many aftermarket and factory monitors
- Uses analog RCA output rather than a modern digital/video-over-CAN interface
- Advanced camera-driven features like dynamic trajectory overlays rely on the vehicle monitor rather than the camera itself
Verdict: The best premium backup camera for buyers who prioritize top-tier image clarity, robust construction, and advanced features like multiple viewing modes and improved sensors.
4. ACAUTO Rear View Backup Camera (Fits Ram 1500/2500/3500 2013–2018)
Best Wired Backup Camera
| Compatible Devices | Fit for RAM 1500 2500 3500 2013-2018 |
|---|---|
| Real Angle of View | 170 degrees |
| Connector Type | RCA |
| Video Capture Resolution | 1080p |
| IP Rating | IP68 (waterproof) |
This ACAUTO wired backup camera is a direct-replacement style camera made to fit Ram 1500/2500/3500 (2013–2018) plus several related models. It mounts in the stock location, plugs into the vehicle harness via RCA power and video connections, and supplies a 170 degree wide-angle view with 1080p capture and night-vision capability. In real-world use it restores rear visibility and adds reversing guide lines where the vehicle system supports them, which helps with trailer hookup and parking in tight spaces. The camera is IP68 waterproof so it holds up in rain and snow, and the surface-mount design keeps installation straightforward for users comfortable with basic wiring or who have access to a professional installer. Expect a steady, low-latency video feed because the unit is wired rather than wireless. Limitations include reliance on an RCA-style input and a compatible factory monitor or aftermarket head unit; you may need an adapter or professional wiring if your display uses a different connector or video format. The camera is a vehicle-specific replacement rather than a universal aftermarket option, so confirm fitment before ordering.
Best for: Buyers who prioritize a stable, low-latency wired video feed and want a factory-style replacement camera for Ram trucks from 2013–2018 to restore or upgrade rear visibility.
Less Ideal for: Drivers seeking a universal wireless camera solution or those who do not have an RCA-compatible monitor and cannot or do not want to modify wiring or use adapters.
- Direct-fit replacement designed for listed Ram and Dodge model years for straightforward installation
- Wired RCA connection provides consistent, low-latency video suitable for towing and precise reversing
- 170° wide-angle lens and 1080p capture reduce blind spots and improve detail when backing up
- IP68 waterproof rating and night-vision support reliable performance in wet and low-light conditions
- Uses RCA connector and may require adapter or professional wiring for non-RCA displays
Verdict: The best wired backup camera for buyers who prefer the consistent signal, lower latency, and typically higher reliability of a direct wired connection.

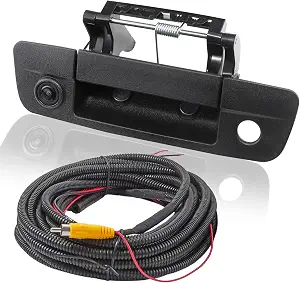

5. EWAY Tailgate Handle Backup Camera for Dodge Ram 2009–2017
Best Night-Vision Backup Camera
| Voltage | 12 volts |
|---|---|
| Optical Sensor Technology | CMOS |
| Field Of View | 170 degrees |
| Video Capture Resolution | 504p |
This EWAY tailgate-handle backup camera replaces the factory handle and adds a 150° wide-angle CMOS camera aimed at improving rear visibility when reversing, especially in low light. It is installed in place of the stock liftgate handle and connects to most aftermarket monitors via a standard RCA video output and long extension cable, so it works with many in-dash screens and mirror monitors. Notable features include IP68 waterproofing, a reinforced ABS and steel housing built to resist fogging, a night-capable sensor with low-light sensitivity, and a toggle for NTSC/PAL formats. In practice the wide field of view helps reveal low obstacles and trailer tongues, and the strengthened housing stands up to washes and rough use. Expect a wired installation and occasional adjustments to align the camera; image quality is good for reversing but is not a high-resolution OEM camera, so fine detail at distance is limited. Overall this is a practical upgrade for Ram drivers who want a durable handle replacement that adds reliable night-time backing assistance.
Best for: Drivers who frequently reverse their 2010–2018 Ram 3500 in low-light or rainy conditions and want a durable, integrated handle replacement that improves rear visibility at night.
Less Ideal for: Buyers seeking a factory-quality high-resolution camera or a wireless, plug-free installation should consider other models or upgrade options.
- Direct tailgate-handle replacement that matches factory fit and includes a keyhole
- 150° wide-angle CMOS camera improves coverage of blind spots behind the truck
- IP68 waterproof and fog-resistant construction suitable for carwashes and wet conditions
- Includes long RCA extension cable and NTSC/PAL toggle for broad monitor compatibility
- Video resolution and detail are limited compared with higher-end HD backup cameras
Verdict: The best night-vision backup camera for drivers who frequently reverse in low-light conditions and need enhanced infrared or low-light sensitivity for clearer images.
6. Bzgnl AHD 720P Tailgate Handle Backup Camera for 2009–2017 Dodge Ram 1500/2500/3500
Best Wide-Angle Backup Camera
| Video Capture Resolution | 720p |
|---|---|
| Field Of View | 170 degrees |
| Connector Type | RCA |
| Waterproof Rating | IP69 |
| Built-In Media | 8M RCA Cable, Camera Body |
This tailgate-handle replacement camera mounts in place of the factory latch and provides a very wide 170 degree view aimed slightly downward for a clear view of the area behind the truck, including the trailer hitch. It captures 720p AHD video with roughly 600 TV lines of detail and offers simple RCA output for connection to most aftermarket displays or rearview mirror monitors. The unit is built to withstand harsh weather with an IP69 rating and includes a 27 foot RCA cable for routing to the cabin. There are convenience wiring options to enable or disable parking guidelines and to switch between CVBS NTSC and AHD modes. Expect straightforward use once wired and aligned, but installation is best handled by someone comfortable with tailgate disassembly and running a long RCA lead. The camera is a focused choice for people who want to maximize lateral coverage and hitch visibility on 2009–2017 Ram trucks, though it relies on RCA connections and a separate monitor rather than plug-and-play vehicle integration.
Best for: Drivers who prioritize the widest possible rear field of view and clear hitch visibility when backing or hooking up a trailer on 2009–2017 Ram trucks and who plan to use an aftermarket display.
Less Ideal for: Drivers who want a factory-style plug-and-play camera tied to the truck head unit or those who prefer wireless or integrated OEM replacements.
- 170° ultra wide-angle lens maximizes lateral visibility and reduces blind spots
- Integrated tailgate-handle design gives a higher, hitch-focused viewing angle
- IP69 waterproof rating for strong resistance to water, corrosion, and weather
- Includes 27 foot RCA cable and RCA video output for easy connection to aftermarket monitors
- Switchable parking guidelines and signal mode (CVBS NTSC / AHD 720P) for flexibility
- Requires running RCA cable and aftermarket monitor since it does not plug into factory systems
- Manufacturer warranty is limited and short compared with many automotive parts
Verdict: The best wide-angle backup camera for users who want maximum lateral visibility and fewer blind spots when backing up or maneuvering in tight spaces.
Choosing the Right 2010-2018 Ram 3500 Backup Camera: Key Factors to Consider
Image Quality and Resolution
Clear, high-resolution images make it easier to judge distances when reversing and reduce guesswork while hitching a trailer. Resolution affects how much detail you can see on the monitor, such as small obstacles or trailer couplers. A wider dynamic range and good sensor sensitivity improve visibility in mixed lighting, for example when backing out of a shaded driveway into bright light.
Pay attention to whether the camera offers features like grid lines or adjustable exposure because these help with spatial judgment on the Ram 3500's large rear profile. Higher-resolution sensors can demand more bandwidth or a specific monitor type, so ensure your display setup supports the camera output format.
Mounting Type and Fitment
Mounting style determines both the look and the practicality of the install on a Ram 3500. Common options include license-plate or bracket mounts, bumper cut-in designs, and recessed mounts for heavier-duty bumpers. Choose a mounting approach that matches the truck's rear geometry and towing setup so the camera field of view is not obstructed by a hitch, spare tire, or bumper step.
Consider whether the camera requires drilling, whether it fits inside an existing light housing, and how exposed the lens will be to road spray and debris. A mount that positions the lens at the same plane as the bumper often yields the most consistent sight lines when hitching or parking.
Wired Vs Wireless Connectivity
Wired systems typically provide a more reliable, low-latency video feed and are less susceptible to interference from other devices or metal structures. For the Ram 3500, running a dedicated video cable to an in-cabin monitor is slightly more involved but yields consistent performance, especially when towing metal trailers that can disrupt wireless signals.
Wireless systems are easier to install and can be attractive if you want to avoid routing cables through the cab. However, expect potential signal dropouts in congested radio environments or when the boat or utility trailer creates shielding. Evaluate antenna placement and whether the system offers a fallback wired option if signal issues arise.
Low-Light and Weather Performance
Ram 3500 owners often operate in early mornings, late evenings, or during adverse weather. Cameras with good low-light sensitivity, infrared assist, or wide dynamic range produce clearer images in these conditions and reduce false confidence when visibility is poor. Weatherproofing ratings such as IP67 or higher indicate protection against dust and temporary immersion, which is important for truck use where spray and road salt are common.
Also check lens coatings and heater options; heated lenses resist fogging in humid or cold climates, while hydrophobic coatings help shed water during rain. Durable housings and corrosion-resistant hardware extend service life in harsh conditions.
Compatibility With Monitors and Head Units
Decide whether you will use an aftermarket monitor, an existing factory screen, or a mirror-mounted display. Ensuring signal format compatibility, connector types, and trigger wire behavior prevents surprises during installation. Some cameras output analog composite video while others use digital protocols; confirm that the monitor accepts the camera's signal without extra converters.
Also consider whether you want split-screen capability for trailer views and whether the monitor accepts multiple camera inputs. For fleets or towing setups, the ability to switch between views quickly can improve safety and convenience.
Installation Complexity and Power Sourcing
Installation effort affects both cost and downtime. Hardwired installs typically require routing video and power cables through the vehicle body, accessing reverse light power, and securing the monitor. For the Ram 3500, check for convenient cable entry points and whether existing harnesses can be used. Simpler installs that tap into the reverse light circuit reduce wiring time but should include inline fuses and proper grounding.
If professional installation is not desired, look for kits with vehicle-specific mounting brackets, pre-terminated cables, and clear wiring diagrams. Consider whether you need additional components such as relay isolators or brake-activated triggers when integrating with factory electronics.
Mounting Options for the Ram 3500
The Ram 3500 has a tall, wide rear profile and often carries towing hardware that affects camera placement. License-plate mounts are simple and keep the lens centered, but may be blocked by a hitch or license plate bracket depending on towing gear. Recessed or bumper-integrated mounts place the lens lower and can offer a more protected position; however, those may require cutting or specific bumper compatibility.
When selecting a mounting method, think about the primary use case. If you hitch trailers frequently, position the camera to show the hitch receiver and the trailer tongue clearly. For general parking and driveway use, a slightly higher mount gives a broader field of view to see pedestrians and obstacles behind the truck.
- License-plate mount: easy install, centered view.
- Bumper/recessed mount: protected lens, may require cutting.
- High-mount options: wider field of view, better for trailers.
- Adjustable brackets: allow fine-tuning of viewing angle.
Wiring Tips and Power Considerations
When hardwiring a camera on a Ram 3500, tapping the reverse light circuit is the common power source so the camera turns on automatically when you shift into reverse. Use a multimeter to locate the correct wire and add an inline fuse to protect the camera and vehicle circuit. Ground the camera to a clean metal surface on the truck chassis for reliable operation.
If you choose a wireless unit, plan antenna routing to minimize obstructions. Keep the transmitter away from major metal objects and place the receiver in the cab where it has a clear line of sight when possible. Some owners opt for a hybrid approach: a wireless camera but a wired power feed to reduce battery drain.
- Tap reverse lamp circuit for switched power.
- Use inline fuses and proper gauge wire.
- Ground to chassis and seal entry points.
- Route cables away from heat sources and moving parts.
Choosing the Right Monitor Setup
You can pair a backup camera with an aftermarket dash monitor, a rearview mirror display, or integrate with an existing head unit if it supports external inputs. For Ram 3500 owners who tow, a larger, high-brightness monitor improves visibility in daylight and shows more detail when aligning a trailer. Mirror displays are less invasive but sacrifice screen size.
Consider mounting ergonomics so the screen is visible without obstructing sight lines. Also verify that the monitor has the necessary video inputs and switchable camera channels if you plan to add multiple cameras for trailer or bed coverage.
- Aftermarket dash monitors: larger screens, flexible mounting.
- Mirror-mounted displays: discrete, minimal dashboard changes.
- Head unit integration: cleaner look if compatible.
- Multiple inputs: useful for trailer and bed cameras.
Maintaining Camera Performance Over Time
Regular cleaning and inspection help preserve image clarity and mechanical reliability. Wipe the lens after muddy trips and check mounting fasteners for loosening from vibration. Inspect wiring for chafing where cables pass through the body or near the hitch area.
If you operate in salted or coastal environments, periodically check metal mounts and connectors for corrosion and use dielectric grease on electrical connections to repel moisture. Replace or reseal damaged housings promptly to prevent water ingress and sensor failure.
- Clean lens regularly, especially after off-road use.
- Inspect wiring and seals for wear and corrosion.
- Use dielectric grease on exposed electrical connections.
- Tighten mounts and check alignment seasonally.
Optimizing Camera Angle and View
Adjusting tilt and horizontal position affects how much ground and horizon the camera shows. Too steep a downward angle can hide objects at a distance, while too shallow an angle may miss close obstacles near the bumper. For trailer alignment, aim for a balance where the hitch area is visible and the immediate rear ground is still in frame.
Test adjustments at low speed in a safe area and mark the final position so you can return to it after maintenance. If your monitor supports on-screen guides, fine-tune them to match actual bumper geometry for accurate distance estimation.
- Start with a moderate downward tilt, then test on-level ground.
- Ensure the hitch area and bumper edge are visible when needed.
- Use adjustable mounts for fine tuning.
- Mark final position after testing to preserve alignment.
Still looking for the perfect fit?
Select your Ram 3500 configuration to see the most relevant Backup Cameras recommendations
How We Chose the Best 2010-2018 Ram 3500 Backup Camera
We prioritized criteria that matter specifically for the 2010-2018 Ram 3500 platform and common owner use cases. First, we assessed image quality and viewing angle because those determine how much of the trailer, bumper, and blind spots you can actually see when reversing. Second, we evaluated low-light and weather performance to ensure reliable operation in rain, dusk, and nighttime conditions. Third, mounting and fitment options were reviewed to match the Ram 3500 bodywork and typical rear bumper or license plate locations. Fourth, wiring complexity and power sourcing were weighed to reflect the vehicle's existing electrical access and towing wiring harness options. Fifth, compatibility with in-cabin monitors or factory screens and options for wireless signal stability were considered for owners who do not want major dash modifications.We excluded systems that required substantial custom fabrication or that lacked adequate environmental protection for heavy-duty truck use. The final shortlist favors solutions that balance dependable optics, durable construction, and realistic installation effort for Ram 3500 owners.
Our full evaluation process is outlined in our review methodology.
FAQ
Will a wireless backup camera work reliably on a Ram 3500 when towing a trailer?
It often depends on the trailer type and local radio interference. Wireless systems are easier to install but metal trailers can attenuate the signal and cause dropouts. If you tow frequently, a wired connection is usually more reliable for consistent video quality.
Can I power a backup camera from the Ram 3500 reverse light circuit?
Yes. Most installations tap the reverse lamp circuit so the camera powers on only in reverse. Use an inline fuse and proper gauge wire, and confirm the correct wire with a multimeter before making connections.
Do I need a special monitor to use a backup camera in my Ram 3500?
Not necessarily. Many aftermarket monitors accept standard composite video inputs and work with common backup cameras. If you plan to integrate with a factory head unit, verify that it supports an auxiliary camera input or use an appropriate interface module.
How do I keep the camera lens clear in wet or snowy conditions?
Regular cleaning and using hydrophobic lens coatings help. Some cameras include heated housings or defogging features that reduce condensation. Positioning the camera under a slight overhang or recessed mount can also limit direct exposure to spray.
Will installing a backup camera affect my Ram 3500 warranty or electronics?
Minor electrical taps are generally safe if done correctly, but improper wiring can cause faults. Use inline fuses, proper grounding, and follow vehicle wiring best practices. If unsure, consult a qualified installer to avoid risking vehicle electronics.
Is it possible to add multiple cameras for trailer and bed views?
Yes. Many systems support multiple inputs or can be expanded with additional cameras and a selector. Ensure your monitor or control module has enough channels and consider routing and power needs for each camera.
Final Verdict
For the 2010-2018 Ram 3500, prioritize a camera system that balances clear daytime and low-light imaging with a mounting approach suited to your towing and parking habits. Wired systems usually give the most dependable feed for heavy towing, while wireless kits reduce installation time for casual use. Consider monitor compatibility, installation complexity, and weather protection when deciding.Ultimately, choose the setup that gives a reliable view of the hitch and rearward blind spots without creating ongoing maintenance headaches. Focus on fitment, image clarity, and durable mounting for the safest, most useful installation on your Ram 3500.
